"Features

AC2100 for Advanced Wi-Fi Speed

AC23 is a dual-band gigabit wireless router, adopted with 802.11 ac wave2 technology and provides speed up to 2033 Mbps to get the most out of your gigabit fiber internet.

4×4 MU-MIMO for 5GHz Band

Powered by 4X4 MU-MIMO technology of 5 GHz band, it provides wider Wi-Fi coverage and faster Wi-Fi speed than regular routers with 3X3 MU-MIMO technology.

Built-in Signal Amplifier for Main Chip

Built-in signal amplifier used both on 2.4GHz and 5GHz bands of AC23 to enhance the penetration capability and expand the Wi-Fi coverage.

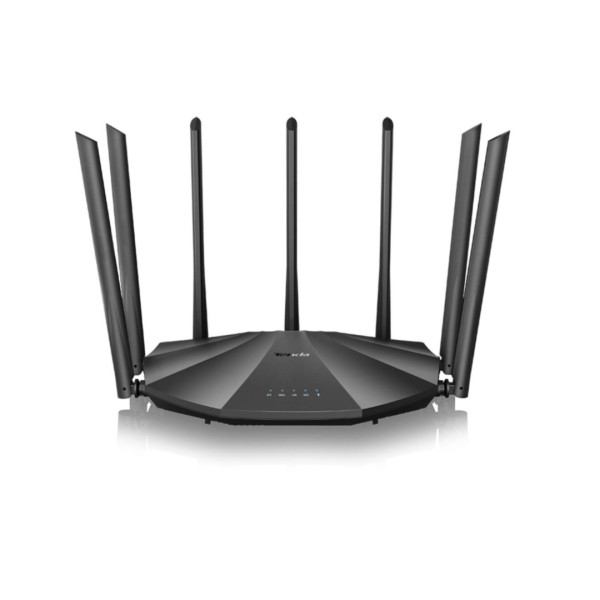

7*6dBi External Antennas for Better Wi-Fi Signal

With 7*6dBi external antennas and four data streams of 5Ghz band, the AC23 can provide optimized Wi-Fi coverage and better 5GHz Wi-Fi signal.

Support Fiber Internet Up to 1000Mbps

Equipped with full gigabit ports, it supports up to 1000Mbps bandwidth access.

Dual-core Design Bring a More Stable Operation

The 28nm 1GHz CPU equipped with 500MHz co-processor, dual-core design along with Ethernet process brings a faster processing speed and provides optimized operation.

Support IPv6 Protocol

AC23 supports IPv6, it can reduce the data transmission time and minimize the lag, provide a better gaming experience.

Specifications

Data Rate 5GHz: Up to 1733Mbps

2.4GHz: Up to 300Mbps

Antenna 7*6dBi external antennas

Button 1* WPS/Reset button

Frequency Simultaneous dual band 2.4 & 5GHz

Wireless PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Interface 1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports

Network Standard IEEE 802.11ac wave2/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz

Encryption WPA-PSK/WPA2-PSK, WPA/WPA2

Wireless Security: Enable/Disable

WPS(Wi-Fi Protected Set-up) fast encryption

Ports 1x WAN port

3x LAN ports

Others Client Filter

Parental Control(support black list and white list)

Remote Web Management

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet

Smart Traffic Prioritisation

PPPoE Username/password Clone

Smart Wi-Fi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App

Bandwidth Control

IPTV

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser

Supports IPv6

Dimension 238.9 x 144.3 x 40.3mm

Color Black"
