HARDWARE FEATURES

INTERFACE 4 10/100Mbps LAN PORTS

1 10/100Mbps WAN PORT

BUTTON WPS/RESET Button

EXTERNAL POWER SUPPLY 9VDC / 0.6A

WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

DIMENSIONS ( W X D X H ) 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm)

ANTENNA 2 Antennas

WIRELESS FEATURES

FREQUENCY 2.4-2.4835GHz

SIGNAL RATE 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

RECEPTION SENSITIVITY 270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

TRANSMIT POWER CE:

<20dBm

FCC:

<30dBm

WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

WIRELESS SECURITY 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

QUALITY OF SERVICE WMM, Bandwidth Control

WAN TYPE Dynamic IP/Static IP/PPPoE/

PPTP/L2TP

MANAGEMENT Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List,

Address Reservation

PORT FORWARDING Virtual Server,Port Triggering, UPnP, DMZ

DYNAMIC DNS DynDns, Comexe, NO-IP

VPN PASS-THROUGH PPTP, L2TP, IPSec (ESP Head)

ACCESS CONTROL Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

FIREWALL SECURITY DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

PROTOCOLS Support IPv4 and IPv6

GUEST NETWORK 2.4GHz Guest Network x1

OTHERS

CERTIFICATION CE, RoHS

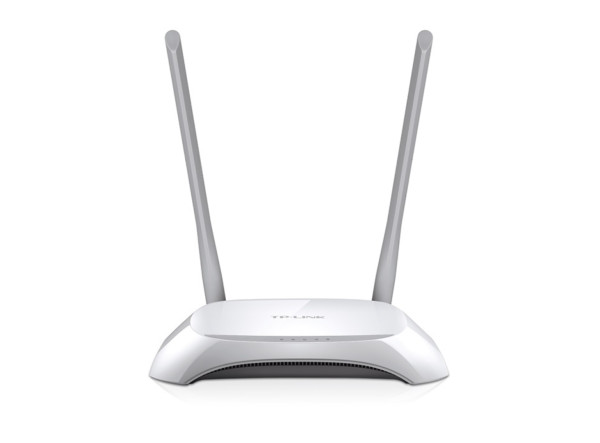

PACKAGE CONTENTS Wireless N Router TL-WR840N

Power supply unit

Resource CD

Ethernet Cable

Quick Installation Guide

SYSTEM REQUIREMENTS Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system

ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

 "
