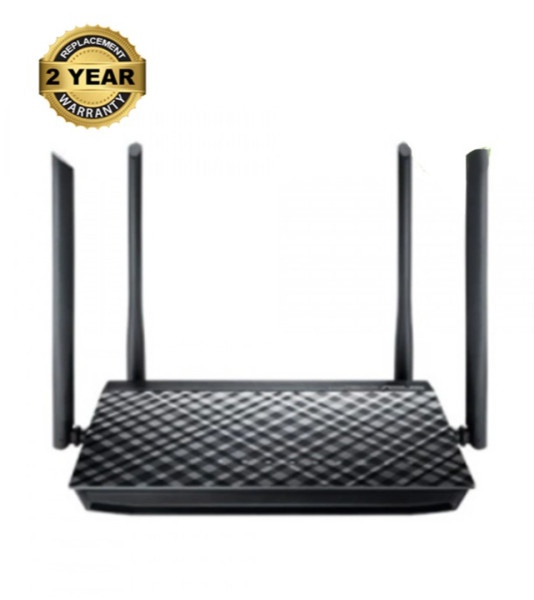

"ASUS RT-AC1200 V2 Specifications

Model Name

RT-AC1200_V2

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

Wi-Fi 4 (802.11n)

Wi-Fi 5 (802.11ac)

IEEE 802.11e

IEEE 802.11i

IPv4

IPv6

Data Rate

802.11a: up to 54 Mbps

802.11b: up to 11 Mbps

802.11g: up to 54 Mbps

Wi-Fi 4 (802.11n): up to 300 Mbps

Wi-Fi 5 (802.11ac) : up to 867 Mbps

Antenna

External antenna x 4

Transmit/Receive

MIMO technology

2.4GHz 2×2

5GHz 2×2

Memory

16 MB Flash

64 MB RAM

Operating Frequency

2.4GHz

5GHz

Ports

RJ45 for 10/100Mbps BaseT for WAN x 1

RJ45 for 10/100Mbps BaseT for LAN x 4

Button

WPS Button, Reset Button, Power Button

Power Supply

AC Input: 110V~240V(50~60Hz)

DC Output: 12 V with max. 0.5 A current

Package content

1 x RT-AC1200 V2 Wi-Fi router

1 x Power adapter

1 x QSG

1 x Warranty card

Product Weight (g)

271 g

Ai Mesh

Ai Mesh : No

Primary Ai Mesh router : No

Ai Mesh node : No

Router APP

ASUS Router APP: Yes

Game

Game Boost/acceleration: No

WT Fast: No

Alexa

Support Alexa Skill: No

IFTTT

Support IFTTT : No

Ai Protection

Ai Protection: No

Router Security Assessment: No

Malicious site blocking: No

Two-Way IPS: No

Infected Device Prevention and Blocking; No

Parental Control

Parental Control: Yes

Parental Control Customized Internet schedule: Yes

Traffic Control

Adaptive QoS: No

Bandwidth Monitor: No

Bandwidth limiter: Yes

Maximum Bandwidth limiter rule: 32

Traditional QoS: Yes

Maximum Traditional QoS rule: 32

Traffic Monitor: Yes

Real-time traffic monitor: Yes

Wired Traffic Monitor: Yes

Wireless Traffic Monitor: Yes

Traffic Analyzer: No

Traffic analysis period: Daily, Weekly, Monthly

Website history: No

Wireless

IPv6: Yes

MU-MIMO: No

Wi-Fi Encryption: Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

UTF-8 SSID: Yes

Guest Network: Yes

Maximum Guest Network rule: 2.4GHz x3, 5GHz x3

Guest Network Encryption: Open system, WPA/WPA2-Personal

WPS: Yes

Wi-Fi MAC address filter: Yes

Maximum MAC filters: 64

Wireless scheduler: Yes

Airtime fairness: Yes

RADIUS Server: Yes

Universal beamforming: No

Explicit beamforming: Yes

IGMP snooping: Yes

WAN

Internet connection Type: PPPOE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN: Yes

WAN Aggregation: No

3G/4G LTE dongle: No

Android tethering: No

Port forwarding: Yes

Maximum port forwarding rule: 64

Port triggering: Yes

Maximum port triggering rule: 32

DMZ: Yes

DDNS: Yes

NAT Passthrough: PPTP, L2TP, IPsec, RTSP, H.323, SIP Passthrough, PPPOE relay

LAN

DHCP Server: Yes

IPTV: Yes

LAN Link Aggregation: No

Manually assign IP address: Yes

Maximum manually assign IP address rule: 64

VPN

VPN Client L2PT: No

VPN Client OVPN: No

VPN Client PPTP: No

VPN Server IPsec: No

VPN Server OVPN: No

VPN Server PPTP: No

VPN Fusion: No

USB application

File System: FAT16, FAT32, NT3G

3G/4G LTE dongle: No

HDD hibernation: No

Safely Remove disk: No

A iCloud: No

Download master: No

Ai Disk: No

Media Server: No

Time Machine: No

Samba Server: No

FTP Server: No

Shared Folder privileges: No

Administration

Operating mode: Access point, Router

Operating system: ASUSWRT

Free OS upgrade: Yes

Firewall: Yes

Maximum Firewall keyword filter: 64

Maximum Firewall network service filter: 32

Maximum Firewall URL filter: 64

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes"
