"Specifications

Network Standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6

Operation Mode

Wireless router mode

Range extender mode

Access point mode

Data Rate

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6,9,12,18,24,36,48,54 Mbps

802.11n: up to 300 Mbps

Antenna

Fixed 5 dBi antenna x 2

Operating Frequency

2.4 GHz

Encryption

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support

Management

UPnP, IGMP v1/v2/v3, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ

VPN Support

IP Sec Pass-Through

PPTP Pass-Through

L2TP Pass-Through

PPTP server

WAN Connection Type

Internet connection type: Automatic IP, Static IP, PPPOE (MPPE supported), PPTP, L2TP

Utilities

‧Device discovery

‧Firmware restoration

*Please download it from FW

Ports

1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN

Button

WPS Button, Power Button

LED Indicator

PWR x 1

Wi-Fi x 1

WAN x 1

LAN x 1

Power Supply

AC Input: 110V~240V(50~60Hz)

DC Output: 12 V with max. 0.5 A current

OS Support

Windows® 8.1

Windows® 8

Windows® 7

Windows® XP

Mac OS X

Linux

Dimensions

146 x 111 x 24 ~ mm (WXDXH)

Weight

180 g

Package Content

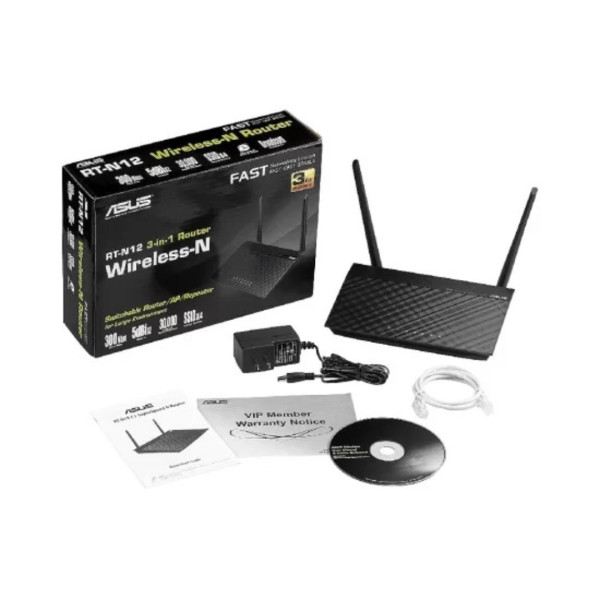

RT-N12+ router *1

RJ45 Cable*1

Power Supply*1"
