"Features

Speed

It works seamlessly with all 802.11a/b/g/n/ac devices. This router can provide simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections.

Modes

It has various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access (Russia PPPoE/PPTP/L2TP) multiple wireless modes- AP, Client. The Multi-SSID provides up to 6 additional separate networks for guests and friends.

Antennas

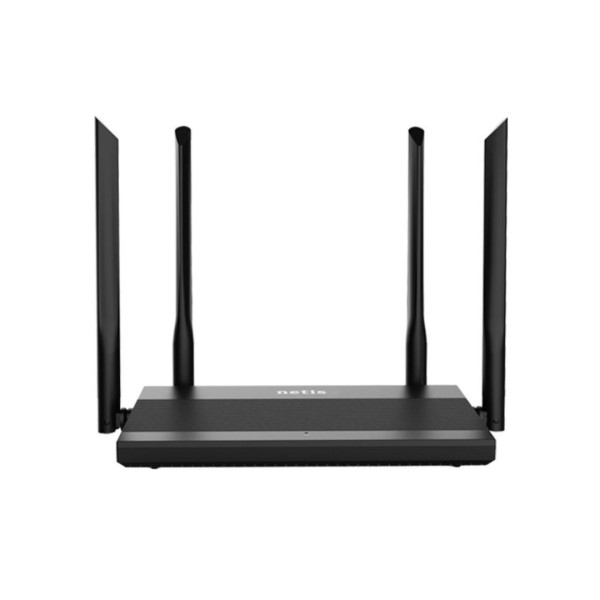

Netis N3D AC1200 Wireless Dual Band Router has four 5dBi high gain antennas. The Netis N3D ensures a wide range across a greater distance. This allows you to enjoy wireless freedom with incredible signal and coverage in any large home or office.

Specifications

Wireless

Standards IEEE 802.11b/g/n 2.4GHz

IEEE 802.11a/n/ac 5GHz

Signal Rate Up to 300Mbps2.4GHz

UP to 867Mbps 5GHz

Frequency Range 2.4-2.4835GHz; 5.180-5.825GHZ

Transmit Power 20dBm(MAX)

Data Transfer Rate 802.11ac:80MHZ(433Mbps, 867Mbps)

802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)

20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-    Sense)

802.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)

802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes AP,  Client, Multi-SSID

Wireless Security WEP/WPA-PSK/WPA2-PSK Encryption

Wireless MAC Filtering

Hardware

Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Interface 1*10/100/100Mbps Auto MDI/MDIX RJ45 WAN port

3*10/100/100Mbps Auto MDI/MDIX RJ45 LAN port

LED Indicators PER、Internet

Buttons Reset

Antenna 4* external fixed 5dBi antenna

Power Supply DC 12V/1.0A(Output)

Dimensions (L x W x H ) 182mm x 108mm x 25mm

Software

WAN Type DHCP, Static IP, PPPoE, L2TP, PPTP

Others Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ,

VPN Pass-through, Dynamic DNS, Static Routing,  Backup & Restore

Certification FCC, CE, EAC

Environment Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package 1* N3D

1* 12V/1.0A Power Adapter

1* Quick Installation Guide (Multilingual"
