HARDWARE FEATURES

PORTS 2 10/100Mbps LAN Ports

1 10/100Mbps WAN Port

BUTTON WPS/Reset Button

EXTERNAL POWER SUPPLY 5VDC / 0.6A

DIMENSIONS ( W X D X H ) 6.1 x 4.5 x 1.4 in. (154 x 114 x 36mm)

ANTENNA 2 Fixed 5dBi Omni Directional Antennas

WIRELESS FEATURES

WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

FREQUENCY 2.412~2.472GHz

SIGNAL RATE 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

RECEPTION SENSITIVITY 270M: -70dBm@10% PER

130M: -72dBm@10% PER

108M: -74dBm@10% PER

54M: -75dBm@10% PER

11M: -94dBm@8% PER

6M: -95dBm@8% PER

1M: -96dBm@8% PER

WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WMM, Wireless Statistics

WIRELESS SECURITY WEP, WPA / WPA2, WPA / WPA2-PSK

SOFTWARE FEATURES

QUALITY OF SERVICE WMM

WAN TYPE Dynamic IP, Static IP, PPPoE, PPTP, L2TP

MANAGEMENT Access Control, Local Management, Remote Management

DHCP Server, DHCP Client List

PORT FORWARDING Virtual Server, UPnP, DMZ

DYNAMIC DNS DynDns, NO-IP

ACCESS CONTROL Parental Controls, Local Management Control, Host list,

Access Schedule, Rule Management

FIREWALL SECURITY SPI firewall, IP and MAC Address Binding

PROTOCOLS IPv4, IPv6

GUEST NETWORK 2.4GHz Guest Network

WORKING MODES Wireless Router

OTHERS

CERTIFICATION CE, RoHS

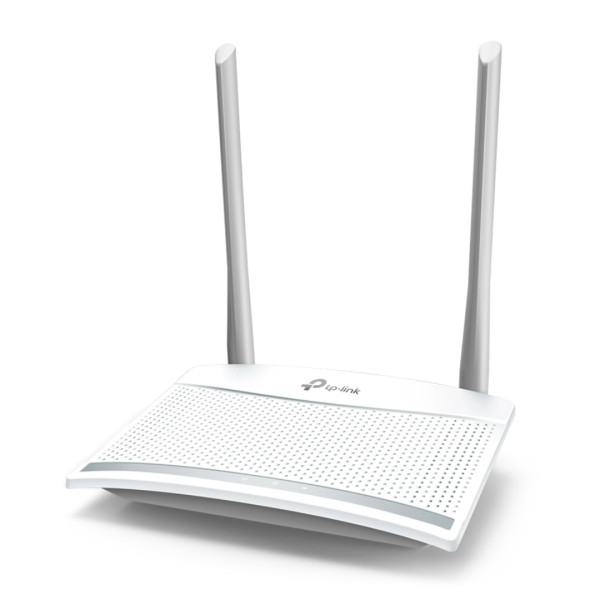

PACKAGE CONTENTS 300Mbps Wi-Fi Router TL-WR820N

Power Adapter

RJ-45 Ethernet Cable

Quick Installation Guide

SYSTEM REQUIREMENTS Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

ENVIRONMENT Operating Temperature: 0℃~40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40℃~70 ℃ (-40℉ ~158 ℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

 "
