"Specifications

Model Name

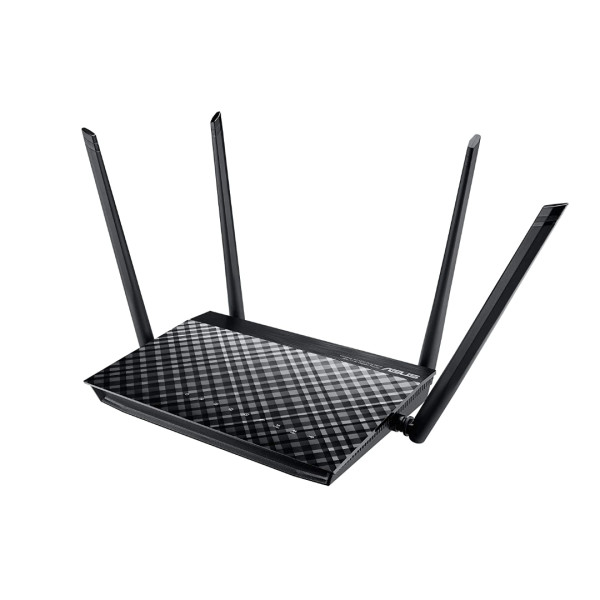

RT-AC750L

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

Wi-Fi 4 (802.11n)

Wi-Fi 5 (802.11ac)

IEEE 802.11e

IEEE 802.11i

IPv4

IPv6

Data Rate

802.11a: up to 54 Mbps

802.11b: up to 11 Mbps

802.11g: up to 54 Mbps

Wi-Fi 4 (802.11n): up to 300 Mbps

802.11ac : up to 433 Mbps

Antenna

External antenna x 4

Transmit/Receive

MIMO technology

2.4GHz 2×2

5GHz 2×2

Memory

16 MB Flash

64 MB RAM

Operating Frequency

2.4GHz

5GHz

Ports

RJ45 for 10/100Mbps BaseT for WAN x 1

RJ45 for 10/100Mbps BaseT for LAN x 4

Button

WPS Button, Reset Button, Power Button

Power Supply

AC Input: 110V~240V(50~60Hz)

DC Output: 12 V with max. 0.5 A current

Package content

RT-AC750L Wi-Fi router

1 x RJ-45 cable

1 x Power adapter

1 x QSG

1 x Warranty card

Product Weight (g)

271 g

AiMesh

Ai Mesh: No

Primary Ai Mesh router: No

Ai Mesh node: No

Router APP

ASUS Router APP: Yes

Game

Game Boost/acceleration: No

WT Fast: No

Alexa

Support Alexa skil : No

IFTTT

Support IFTTT: No

Ai Protection

Ai Protection : No

Router Security Assessment : No

Malicious site blocking : No

Two-Way IPS : No

Infected Device Prevention and Blocking ; No

Parental Control

Parental Control: Yes

Parental Control Customized Internet schedule: Yes

Traffic Control

Adaptive QOS : No

Bandwidth Monitor : No

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : No

Traffic analysis period : Daily, Weekly, Monthly

Website history : No

Wireless

IPv6 : Yes

MU-MIMO : No

Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Encryption : Open system, WPA/WPA2-Personal

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : No

Explicit beamforming : Yes

IGMP snooping : Yes

WAN

Internet connection Type : PPPOE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : No

WAN Aggregation : No

3G/4G LTE dongle : No

Android tethering : No

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP, L2TP, IP Sec, RTSP, H.323, SIP Passthrough, PPPOE relay

LAN

DHCP Server: Yes

IPTV: Yes

LAN Link Aggregation: No

Manually assign IP address: Yes

Maximum manually assign IP address rule: 64

VPN

VPN Client L2P T: No

VPN Client OVP: No

VPN Client PPTP: No

VPN Server IP Sec: No

VPN Server OVPN: No

VPN Server PPTP: No

VPN Fusion: No

USB application

File System: FAT16, FAT32, NT3G

3G/4G LTE dongle: No

HDD hibernation: No

Safely Remove disk : No

A iCloud : No

Download master : No

Ai Disk : No

Media Server : No

Time Machine : No

Samba Server : No

FTP Server : No

Shared Folder privileges : No

Administration

Operating mode: Access point, Router

Operating system: ASUSWRT

Free OS upgrade: Yes

Firewall: Yes

Maximum Firewall keyword filter: 64

Maximum Firewall network service filter: 32

Maximum Firewall URL filter: 64

Wake on LAN (WOL): Yes

SSH: Yes

Configuration backup and restore: Yes

Diagnosis tools: Yes

Feedback system: Yes

System log: Yes"
