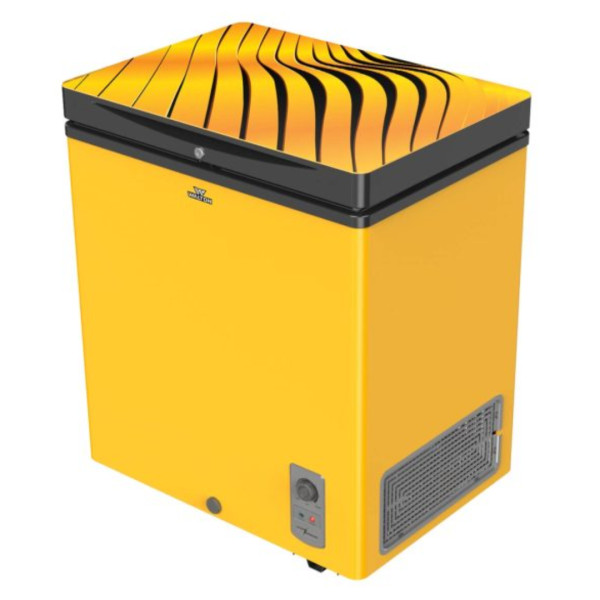

"Walton Refrigerator WCF-1D5-GDEL-LX Freezer

Walton Refrigerator WCF-1D5-GDEL-LX Freezer.

Features

Type: Direct Cool

Category: Frost

Gross Volume: 145Ltr

Net Volume: 145Ltr

Refrigerant: R600a

Specifications

Type Direct Cool

Gross Volume 145Ltr.

Net Volume 145Ltr.

Gross Weight 42 ± 2 (Kg)

Net Weight 37 ± 2 (Kg)

Climatic Type (SN, N, ST, T) N ~ ST

Rated Operating Voltage and Frequency 220 ~ 240/ 50

Compressor Input Power (Watt) V 03.01- 110

V 04.01- 111

V 05.01-140

Compressor Type V 03.01- RSCR

V 04.01- RSCR

V 05.01-RSCR

Cooling Efect Freezer Cabinet Less than -18℃

Energy Rating N/A

Temperature Control (Electronic/ Mechanical) Mechanical

Defrosting (Automatic/ Manual) Manual

Reversible Door Foaming Door

Handle (Recessed/ Grip) N/A

Lock N/A

Refrigerant V 03.01- R134a

V 04.01- R134a

V 05.01-R600a

Condenser 100% Copper

Thermostat RoHS Certified

Capillary Copper

Polyurethane foam blowing agent CycloPentane

[Eco-friendly (100% CFC &

HCFC Free) Green Technology]

Recommended voltage stabilizer capacity (600VA) V 01.01

V 02.01

V 03.01

V 04.01

V 05.01

V 05.02

Exterior Material Painted Steel (PCM)

Interior Material Embossed Aluminium Sheet

Ice/ cold water Dispenser No

Shelf (Material/No) Wire/1

Drawer No

Basket Wire/1

Interior Lamp Yes

Width/mm 744

Depth/mm 585

Height/mm 853

Width/mm 795

Depth/mm 620

Height/mm 890

Loading quantity (20ft/40ft.40HQ) 50/106/159

Warranty Information

Replacement Guarantee (Compressor, Chamber, Condenser): 1 Year (Residential Use)

Main Parts (Compressor): 12 Years

Spare Parts: 4 Years *

After Sales Service:5 Years *

N.B. This warranty does not cover the following cases"
