Detailed Information

climatic type (sn, n, st, t)

N ~ ST

rated operating voltage and frequency

220-240V~/50Hz

compressor input power (watt)

V 0501 - 42~145

compressor type

V 0501 - BLDC

wide voltage range

V0501/V0502/V0503 : (110V-270V)

cooling effect

Freezer Cabinet Less than -18℃

Refrigerator Cabinet 0℃ to +5℃

temperature control (electronic/mechanical)

V 0501 - Mechanical

defrosting (automatic/ manual)

Manual

reversible door

No

handle (recessed/ grip)

Recressed/ Grip/ Built-in

lock

Yes

capillary

Copper

refrigerant

V 0501 - R600a

thermostat

RoHS Certified

polyurethane foam blowing agent

Cyclopentene [Eco-friendly (100% CFC & HCFC Free) Green Technology]

recommended voltage stabilizer

V0501/V0502/V0503 : Wide Voltage Design (110V-270V).

N.B.: If out of voltage range(75V-264V) then suggested voltage stabilizer capacity is 2100VA.

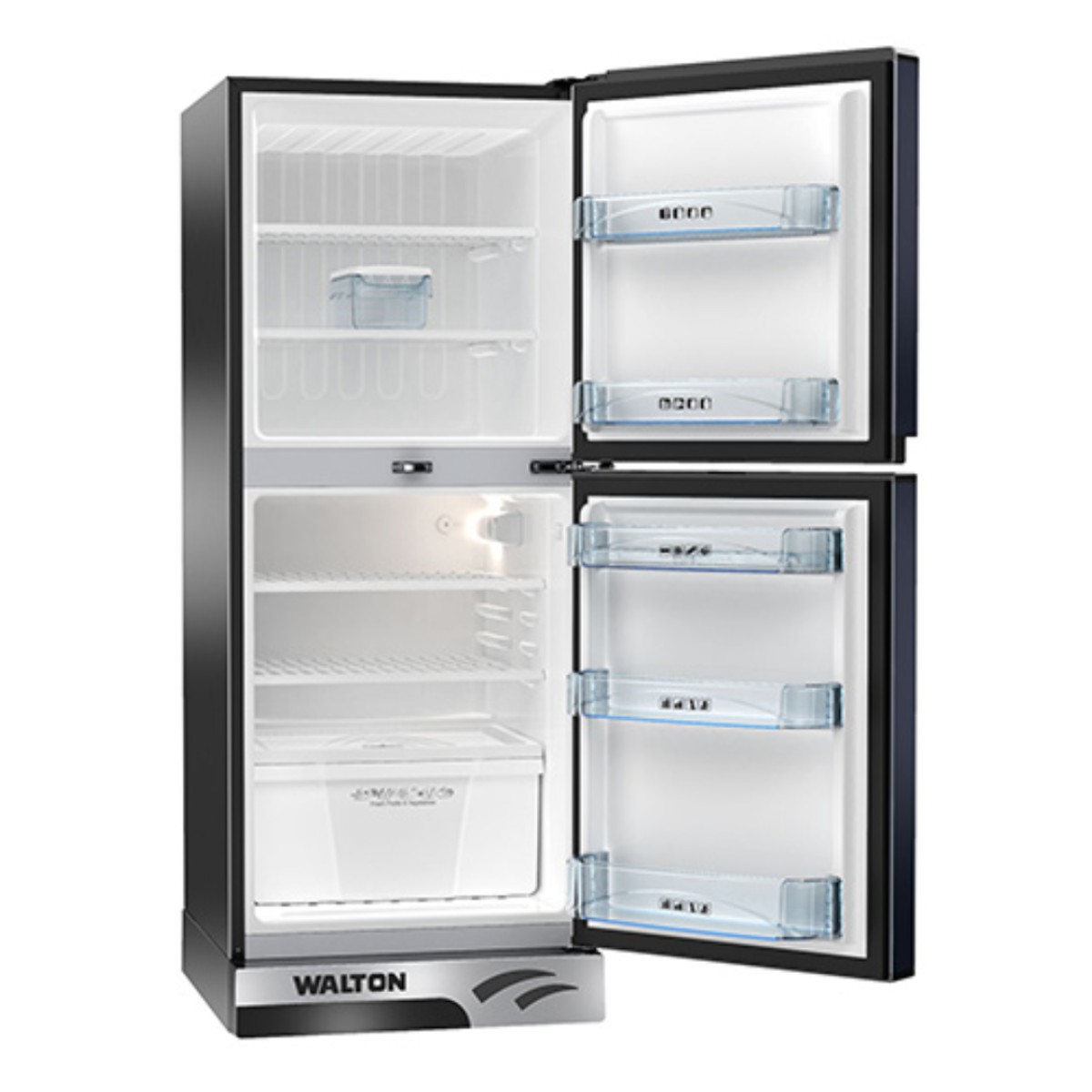

refrigerator compartment

Shelf (Material/ No.): Wire/2

Door Basket: PVC/3

Interior Lamp: Yes

Vegetable Crisper: Yes (Plastic)

Vegetable Crisper Cover: Yes (ABS/ PS)

Egg Tray or Pocket: Yes

Can Storage Dispenser: No

Deodorizer: No

freezer compartment

Shelf (Material/ No.): Wire/2

Drawer: No

Door Basket: No

Interior Lamp: No

net dimension (mm)

Width/mm: 594 mm

Depth/mm: 711 mm

Height/mm: 1520 mm

packing

Width/mm: 635 mm

Depth/mm: 740 mm

Height/mm: 1590 mm

Loading Capacity- 40HQ/ 40Ft/ 20Ft: 80/ 80/ 38

net weight (kg)

59 ± 2 Kg

gross weight (kg)

66 ± 2 Kg

Special Feature

special features

1. Experience freshness with WALTON Refrigerator.

2. Faster Cooling Speed: Latest cooling system design technology is applied which confirms faster cooling speed.

3. Longer Freshness: Keep all your food fresh and healthy for longer with Walton Refrigerator.

4. Magical nano silver technology in plastic & anti fungal door gasket.

5. Wide Climate Design (N~ST).

Warranty Information

residential use

- Replacement Guarantee: 1 Year (Condition Apply)

- Main Parts (Compressor): 12 Years

- Door: 3 Years *

- Spare Parts: 4 Years *

- After Sales Service: 5 Years *

commercial use

- Main Parts (Compressor): 4 Years

- Door: 1 Years *

- Spare Parts: 2 Years *

- After Sales Service: 2 Years *

Terms & Conditions

Warranty Terms & Conditions

This warranty does not cover the following cases:

1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.

2. Any damage or failure caused by unauthorized modification or alteration.

3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.

Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
