HARDWARE FEATURES

INTERFACE 4 10/100Mbps LAN PORTS

1 10/100Mbps WAN PORT

BUTTON Reset Button

WPS Button

EXTERNAL POWER SUPPLY 9VDC / 0.6A

WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

DIMENSIONS ( W X D X H ) 9.1 x 5.7 x 1.4 in.(230 x 144 x 35 mm)

ANTENNA 3 x 5dBi fixed Omni Directional Antennas (RP-SMA)

WIRELESS FEATURES

FREQUENCY 2.4-2.4835GHz

SIGNAL RATE 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

RECEPTION SENSITIVITY 270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -93dBm@8% PER

6M: -95dBm@10% PER

1M: -98dBm@8% PER

WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WMM,

Wireless Statistics

WIRELESS SECURITY WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

QUALITY OF SERVICE WMM, Bandwidth Control

WAN TYPE Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual

Access), Bigpond

MANAGEMENT Access Control

Local Management

Remote Management

DHCP Server, DHCP Client List, Address Reservation

PORT FORWARDING Virtual Server,Port Triggering, UPnP, DMZ

DYNAMIC DNS DynDns, Comexe, NO-IP

ACCESS CONTROL Parental Control, Local Management Control, Host List,

Access Schedule, Rule Management

FIREWALL SECURITY DoS, SPI Firewall, IP and MAC Address Binding

PROTOCOLS Support IPv4 and IPv6

GUEST NETWORK 2.4GHz Guest Network x1

OTHERS

CERTIFICATION CE, RoHS

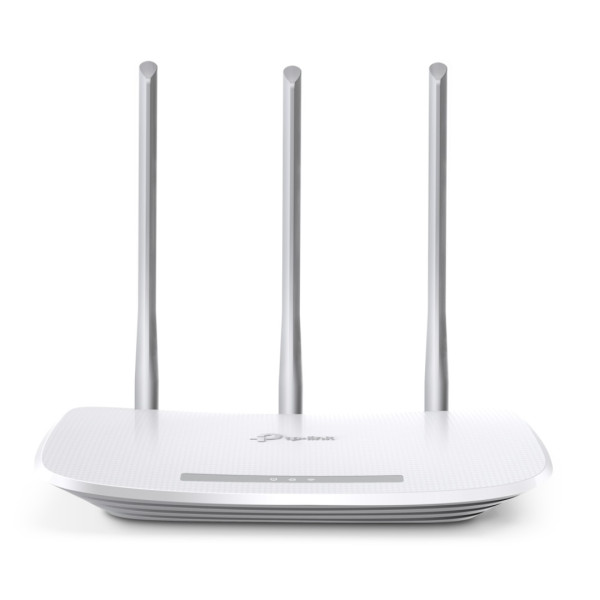

PACKAGE CONTENTS Wireless Router TL-WR845N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

SYSTEM REQUIREMENTS Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for internet access)

ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

 "
