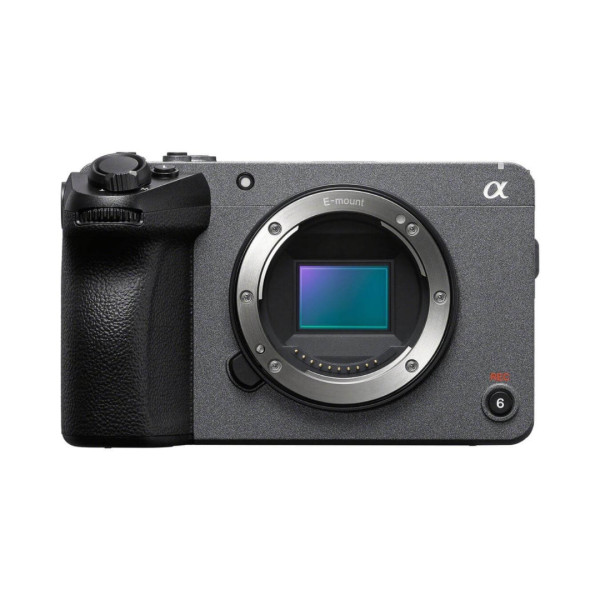

"Sony FX30 Cinema Line Camera Specs

Imaging

Lens Mount Sony E

Lens Communication Yes, with Autofocus Support

Sensor Resolution Actual: 27 Megapixel

Effective: 26 Megapixel (6192 x 4128)

Sensor Type 23.3 x 15.5 mm (APS-C) CMOS

Image Stabilization Sensor-Shift, 5-Axis

Built-In ND Filter None

Internal Filter Holder No

Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Rolling Shutter

Shutter Speed 1/8000 to 30 Seconds in Photo Mode

1/8000 to 1/4 Second in Video Mode

ISO Sensitivity 100 to 32,000 (Extended: 50 to 102,400)

Advertised Dynamic Range 14 Stops

White Balance 2500 to 9900K

Presets: Auto, Cloudy, Color Temperature, Daylight, Fluorescent, Incandescent, Shade, Underwater

Video Capture

Internal Recording Modes XAVC HS 4:2:2 10-Bit

UHD 4K (3840 x 2160) from 1 to 119.88 fps

XAVC S-I 4:2:2 10-Bit

UHD 4K (3840 x 2160) from 1 to 119.88 fps

1920 x 1080p from 1 to 239.76 fps

XAVC S

UHD 4K (3840 x 2160) from 1 to 119.88 fps

1920 x 1080p from 1 to 239.76 fps

XAVC Proxy

1920 x 1080

1280 x 720

External Recording Modes 4:2:2 10-Bit via HDMI

UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps

ProResRAW 16-Bit via HDMI

4672 x 2628 at 23.98/25/29.97/50/59.94 fps

Fast-/Slow-Motion Support Yes

Gamma Curve HDR-HLG, S Cinetone, Sony S-Log 3

Built-In Microphone Type Stereo

Audio Recording 2-Channel 24-Bit LPCM Audio

4-Channel 24-Bit LPCM Audio

IP Streaming None

Still Image Capture

Image Sizes 3:2

26 MP (6192 x 4128)

Aspect Ratio 3:2, 16:9

Image File Format HEIF, JPEG, Raw

Bit Depth 14-Bit

Interface

Media/Memory Card Slot Dual Slot: CFexpress Type A / SD

Video I/O 1 x HDMI 2.0 Output

Audio I/O 1 x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body

1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body

Power I/O 1 x USB-C Input

Other I/O 1 x Sony Multi/Micro-USB (Camera Interface, Timecode)

1 x USB-C

Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Control

Bluetooth

Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size 3″

Resolution 2,360,000 Dot

Display Type Articulating Touchscreen LCD

Focus

Focus Type Auto and Manual Focus

Focus Mode Automatic, Continuous-Servo AF, Direct Manual Focus, Manual Focus, Single-Servo AF, Touch AF & Shutter

Autofocus Points Video

Phase Detection: 495

Autofocus Sensitivity -3 to +20 EV

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 140°F / -20 to 60°C

General

Battery Type Sony Z-Series

Tripod Mounting Thread 1 x 1/4″-20 Female (Bottom)

Accessory Mount 1 x Intelligent Hot Shoe on Camera Body

5 x 1/4″-20 Female on Camera Body

Material of Construction Magnesium Alloy

Dimensions (W x H x D) 5.1 x 3.1 x 3.3″ / 129.7 x 77.8 x 84.5 mm

Weight 1.2 lb / 562 g (Body Only)"
