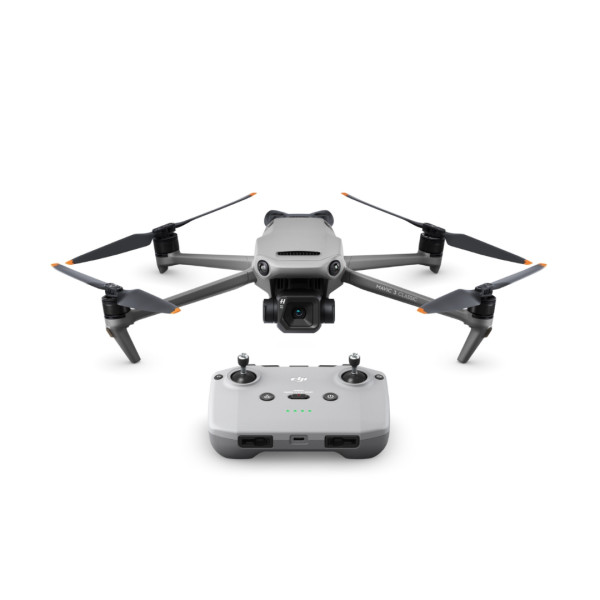

"DJI Mavic 3 Classic Specs

Aircraft

Takeoff Weight: 895 g

Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H)

Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)

Max Ascent Speed: 8 m/s

Max Descent Speed: 6 m/s

Max Horizontal Speed (at sea level, no wind): 21 m/s

Max Takeoff Altitude: 6000 m

Max Flight Time: 46 minutes

Max Hovering Time: 40 minutes

Max Flight Distance: 30 km

Max Wind Speed Resistance: 12 m/s

Max Tilt Angle: 35°

Operating Temperature: -10° to 40° C (14° to 104° F)

Global Navigation Satellite System: GPS + Galileo + BeiDou

Hovering Accuracy Range: Vertical:

±0.1 m (with vision positioning)

±0.5 m (with GNSS positioning)Horizontal:

±0.3 m (with vision positioning)

±0.5 m (with high-precision positioning system)

Internal Storage: 8 GB (approx. 7.9GB available space)

Hasselblad Camera

Image Sensor: 4/3 CMOS, Effective Pixels: 20 MP

Lens: FOV: 84°

Format Equivalent: 24 mm

Aperture: f/2.8-f/11

Focus: 1 m to ∞

ISO Range: Video:

Normal, Slow-motion:

100-6400 (normal color)

400-1600 (D-Log)

100-1600 (HLG)

Night Mode:

800-12800 (normal color)Photo:

100-6400

Shutter Speed: Electronic Shutter: 8-1/8000 s

Max Image Size: 5280×3956

Still Photography Modes: Single Shot: 20 MP

Burst Shooting: 20 MP, 3/5/7 frames

Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step

Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s

Photo Format: JPEG/DNG (RAW)

Video Resolution: H.264/H.265

5.1K: 5120×2700@24/25/30/48/50 fps

DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps

4K: 3840×2160@24/25/30/48/50/60/120* fps

FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps

Video Format: MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate: H.264/H.265: 200 Mbps

Supported File System: exFAT

Color Mode: Normal/HLG/D-Log

Digital Zoom: 3×

Gimbal

Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range: Tilt: -135° to 100°

Roll: -45° to 45°

Pan: -27° to 27°

Controllable Range: Tilt: -90° to 35°

Pan: -5° to 5°

Max Control Speed (tilt): 100°/s

Angular Vibration Range: ±0.007°

Sensing

Sensing Type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Forward: Measurement Range:

0.5-20 m

Detection Range:

0.5-200 m

Effective Sensing Speed:

Flight Speed ≤ 15 m/s

FOV:

Horizontal 90°, Vertical 103°

Backward: Measurement Range:

0.5-16 m

Effective Sensing Speed:

Flight Speed ≤ 12 m/s

FOV:

Horizontal 90°, Vertical 103°

Lateral: Measurement Range:

0.5-25 m

Effective Sensing Speed:

Flight Speed ≤ 15 m/s

FOV:

Horizontal 90°, Vertical 85°

Upward: Measurement Range:

0.2-10 m

Effective Sensing Speed:

Flight Speed ≤ 6 m/s

FOV:

Front and Back 100°, Left and Right 90°

Downward: Measurement Range:

0.3-18 m

Effective Sensing Speed:

Flight Speed ≤ 6 m/s

FOV:

Front and Back 130°, Left and Right 160°

Operating Environment: Forward, Backward, Left, Right, and Upward:

surfaces with discernible patterns and adequate lighting (lux >15)

Downward:

surfaces with discernible patterns, diffuse reflectivity >20% (e.g., walls, trees, people), and adequate lighting (lux >15)

Video Transmission

Video Transmission System: O3+

Live View Quality: Remote Controller:

1080p/30fps, 1080p/60fps

Operating Frequency: 2.400-2.4835 GHz

5.725-5.850 GHz

Transmission Power (EIRP): 2.400-2.4835 GHz:

< 33 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:

< 33 dBm (FCC)

< 30 dBm (SRRC)

< 14 dBm (CE)

Max Transmission Distance (free of interference): FCC: 15 km

CE: 8 km

SRRC: 8 km

MIC: 8 km

Max Transmission Distance (with interference): Strong Interference: urban landscape, approx. 1.5-3 km

Medium Interference: suburban landscape, approx. 3-9 km

Low Interference: suburb/seaside, approx. 9-15 km

Max Download Speed: O3+:

5.5 MB/s (with DJI RC-N1 Remote Controller)

15 MB/s (with DJI RC Pro)

5.5 MB/s (with DJI RC)Wi-Fi 6: 80 MB/s*

Lowest Latency: 130ms (with DJI RC-N1 Remote Controller)

120ms (with DJI RC Pro)

130ms (with DJI RC)

Antennas: 4 antennas, 2T4R

Battery

Capacity: 5000mAh

Weight: 335.5 g

Nominal Voltage: 15.4 V

Charging Voltage Limit: 17.6 V

Type: Li-ion 4S

Energy: 77 Wh

Charging Temperature: 5° to 40° C (41° to 104° F)

Charging Time: Approx. 96 minutes

Charger

Input: 100-240 V (AC), 47-63 Hz, 2 A

Output: USB-C:

5 V, 5 A

9 V, 5 A

12 V, 5 A

15 V, 4.3 A

20 V, 3.25 A

5-20 V, 3.25 AUSB-A:

5 V, 2 A

Rated Power: 65 W

Battery Charging Hub

Input: USB-C: 5-20 V, max 5 A

Output: Battery Port: 12-17.6 V, max. 5 A

Rated Power: DJI Mavic 3 Battery Charging Hub: 65 W

DJI Mavic 3 Battery Charging Hub (100W): 100 W

Charging Type: Three batteries charged in sequence

Compatibility: DJI Mavic 3 Intelligent Flight Battery

Car Charger

Input: Car Power Input:

12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output: USB-C:

5 V, 5 A

9 V, 5 A

12 V, 5 A

15 V, 4.3 A

20 V, 3.25 A

5-20 V, 3.25 AUSB-A:

5 V, 2 A

Rated Power: 65 W

Charging Temperature: 5° to 40° C (41° to 104° F)

Storage

Recommended microSD Cards: Lexar 1066x 64GB V30 A2 microSDXC

Lexar 1066x 128GB V30 A2 microSDXC

Lexar 1066x 256GB V30 A2 microSDXC

Lexar 1066x 512GB V30 A2 microSDXC

SanDisk High Endurance 64GB V30 microSDXC

SanDisk High Endurance 128GB V30 microSDXC

SanDisk High Endurance 256GB V30 microSDXC

Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

Kingston Canvas Go! Plus 256GB V30 A2 microSDXC

Kingston Canvas Go! Plus 512GB V30 A2 microSDXC

Samsung EVO Plus 512GB V30 A2 microSDXC

Samsung PRO Plus 256GB V30 A2 microSDXC

Samsung PRO Plus 512GB V30 A2 microSDXC

Remote Controller

Max Operating Time: DJI RC-N1 Remote Controller

Without charging any mobile device: 6 hours

When charging a mobile device: 4 hours

Max Supported Mobile Device Size: DJI RC-N1 Remote Controller

180×86×10 mm (L×W×H)

Operating Temperature: DJI RC-N1 Remote Controller

-10° to 40° C (14° to 104° F)

Transmitter Power (EIRP): DJI RC-N1 Remote Controller

2.400-2.4835 GHz:

< 26 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:

< 26 dBm (FCC)

< 23 dBm (SRRC)

< 14 dBm (CE)

DJI Mavic 3 Classic (DJI RC-N1) In the Box

DJI Mavic 3 Classic × 1

DJI Mavic 3 Intelligent Flight Battery × 1

DJI RC-N1 Remote Controller × 1

DJI Mavic 3 Low-Noise Propellers (pair) × 3

DJI 65W Portable Charger × 1

USB-C Cable × 1

DJI RC-N1 RC Cable (USB-C Connector) × 1

DJI RC-N1 RC Cable (Lightning Connector) × 1

DJI RC-N1 RC Cable (Standard Micro-USB Connector) × 1

DJI Mavic 3 Classic Storage Cover × 1

Spare DJI RC-N1 Control Sticks (pair) × 1"
