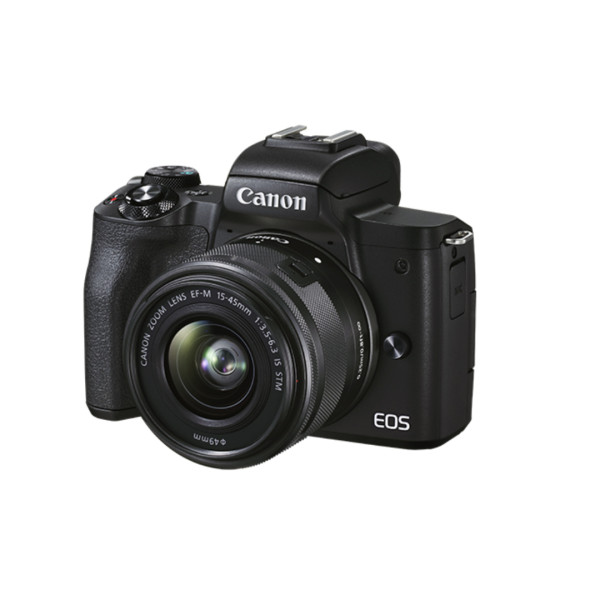

"Canon EOS M50 Mark II – Specification

Physical Specifications

Body Materials: Polycarbonate

Operating Environment: 0 – 40 °C, 85% or less humidity

Dimensions (W x H x D): 116.3 x 88.1 x 58.7mm

Weight (Body Only): Approx 387g (black), 388g (white), CIPA testing standard including battery and memory card

Image Sensor

Type: 22.3 x 14.9mm CMOS

Effective Pixels: Approx. 24.1 megapixels

Total Pixels: Approx 25.8 megapixels

Aspect Ratio: 3:2

Low-Pass Filter: Built-in/Fixed

Sensor Cleaning: EOS integrated cleaning system

Color Filter Type: Primary Color

Image Processor

Type: DIGIC 8

Lens

Lens Mount: EF-M (EF and EF-S lenses compatible via Mount adapter EF-EOS M)

Focal Length: Equivalent to 1.6x the focal length of the lens

Image Stabilisation: Optical Image Stabilizer on compatible lens

Movie: In-camera Digital IS available. Further stabilisation enhancements from lenses compatible with Dynamic IS

Focusing

Type: Dual Pixel CMOS AF System.  Phase detection pixels built onto imaging sensor

Contrast detection method is used during 4K Movie Servo AF

AF System / Points: Maximum 3975 positions

Maximum 143/99 points available for automatic selection in Face+Tracking mode. May vary depending on settings.

Max 25 frames in Zone AF

Freely position 1 AF point/ 1 AF Zone via manual selection (area available lens dependent)

AF Working Range: EV -4 – 18 (at 23 °C, ISO 100, with EF-M 32mm f/1.4 STM)

AF Modes: One-Shot AF and Servo AF

AF Point Selection: Face + Tracking: Face and subject tracking via automatic recognition/ manual selection via touchscreen. Automatic selection over AF points when no face recognised within frame.

Eye AF available

Zone AF: Manual zone selection, plus automatic selection over AF points within selected zone

1-point AF / Spot AF: Manual selection via touchscreen/ buttons

Selected AF Point Display: Indicated on LCD monitor/ EVF

AF Lock: Locked when shutter button is pressed half way or customisable AE Lock Button

AF Assist Beam: via LED assist beam

Manual Focus: With EF & EF-S lenses – Select via AF/MF switch on lens

With EF-M lenses – Select via dedicated MF Button/ other customisable buttons (toggle AF/MF).

MF Peaking available

AF+MF available (Manual focus adjustment after One-Shot AF)

Magnify image available during MF (5x or 10x)

Exposure Control

Metering Modes: Real-time metering from the image sensor

(1) Evaluative metering (384 zones)

(2) Partial metering at center (approx. 5.8% of Live View Screen)

(3) Center weighted average metering

(4) Spot metering (approx. 2.9% of Live View Screen)

Partial and spot metering not available in movie

Metering Brightness Range: Still image: EV -2 – 20 (at 23 °C, ISO 100)

Movie: EV 0 – 20 (at 23 °C, ISO 100)

AE Lock: Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.

Manual: By AE lock Button in creative zone modes.

Exposure Compensation: +/-3 EV in 1/3 stop increments

AEB: 3 shots, +/- 2 EV, 1/3-stop increments (can be used together with Exposure Compensation)

ISO Sensitivity: Open

ISO AUTO (minimum 100, maximum can be set between 400 – 25600 except in Scene Intelligent Auto and Creative Filter mode max 6400, and Flash On 1600), 100 – 25600 in 1/3 stop increments. ISO can be expanded to 51200

4K Movie: ISO AUTO (100 – 6400), 100 – 6400 in 1/3-stop increments. Full HD and HD Movie: ISO AUTO (100 – 12800), ISO 100 – 12800 in 1/3-stop increments. ISO can be expanded to 25600

Shutter

Type: Electronically controlled focal-place shutter

Speed: 30 – 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

White Balance

Type: Auto white balance with the imaging sensor

Settings: Auto (Ambience Priority), Auto (White Priority), Daylight, Shade, Cloudy, Tungsten light, White

Fluorescent light, Flash, Custom, Color Temperature (100 Kelvin increments)White balance compensation:

Blue/Amber +/-9 levels

2. Magenta/ Green +/-9 levels

Custom White Balance: Yes, 1 setting can be registered

Viewfinder

Type: 0.39-type OLED Electronic Viewfinder

2,360,000 dots

Coverage (Vertical/Horizontal): Approx 100%

Eyepoint: Approx 22mm

Dioptre Correction: Yes

Viewfinder Information: Customisable and toggle via INFO. Button

(1) Liveview image with exposure info

(2) Liveview image with basic info

(3) Liveview image with full infoCustomisable settings:

Grid overlay (x3 formats), Histogram (Brightness/ RGB), Electronic Level, Multi aspect ratios

Depth of Field Preview: Yes

LCD Monitor

Type: 7.5 cm (3.0”) Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. Electrostatic capacitive type. Vari-Angle

Coverage: Approx 100%

Brightness Adjustment: Adjustable to one of seven levels

Display Options: Customisable and toggle via INFO. Button

(1) Liveview image with exposure info

(2) Liveview image with basic info

(3) Liveview image with full infoCustomisable settings:

Grid overlay (x3 formats), Histogram (Brightness/ RGB), Electronic Level, Multi aspect ratios, Hints and Tips

Flash

Built-in Flash GN (ISO 100, meters): 5

Built-in Flash Coverage: Maximum coverage at approx. 15mm (35mm equivalent: approx. 24mm)

Built-in Flash Recycle Time: Approx. 3 seconds 4

Modes: Auto (E-TTL II), Manual (minimum/medium/maximum)

Red-Eye Reduction: Yes

X-Sync: 1/200 sec

Flash Exposure Compensation: +/- 2 EV in 1/3 increments

Flash Exposure Lock: Yes

Second Curtain Synchronisation: Yes

HotShoe / PC Terminal: Yes/No

External Flash Compatibility: E-TTL II with EX and EL series Speedlites, wireless multi-flash support

External Flash Control: Via camera setting/ flash setting menu

Shooting

Modes: Scene Intelligent Auto, Hybrid Auto, Creative Assist, SCN(Self-Portrait, Portrait, Night Portrait, Smooth Skin, Landscape, Sports, Close-up, Food, Panning, Handheld Night Scene, HDR Backlight Control, Silent Mode), Creative Filters (Grainy B/W, Soft Focus, Fish-eye Effect, Water painting effect, Toy camera effect, Miniature effect , HDR Art standard, vivid, bold, embossed), Program AE , Shutter priority AE, Aperture priority AE, Manual exposure, Movie (Movie auto exposure, Movie manual exposure, Time-lapse movie)

Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space: sRGB and Adobe RGB

Image Processing: Highlight Tone Priority (standard and enhanced)Auto Lighting Optimizer (4 settings)

Long exposure noise reduction

High ISO speed noise reduction (4 settings + Multi Shot NR)

Lens peripheral illumination correction

Chromatic aberration correction

Diffraction correction

Digital Lens Optimizer (DLO)Creative Assist:

Presets

Background Blur (5 settings)

Brightness (19 levels)

Contrast (9 levels)

Saturation (9 levels)

Color Tone 1 & 2 (19 levels)

Monochrome (Off/Black and white/Sepia/Blue/Purple/Green)

Drive Modes: Single, High-Speed Continuous, Low-Speed Continuous, Self-timer (2s, 10s, Remote)

Continuous Shooting: One shot AF: Approx. 10 shots/sec for up to 36 frames in JPEG and 10 frames in RAW

Live View Mode

Coverage: Approx. 100% (horizontally and vertically)

File Type

Still Image Type: JPEG: Fine, Normal (Exif 2.31 compliant) / Design rule for Camera File system (2.0)

RAW: RAW, C-CRAW (CR3 14-bit)

Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG Simultaneous Recording: Yes, RAW + various JPEG compression possible

Image Size: RAW: 6000 x 4000JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400 x 1600

JPEG 4:3: (L) 5328 x 4000, (M) 3552 x 2664, (S1) 2656 x 1992, (S2) 2112 x 1600

JPEG 16:9: (L) 6000 x 3368, (M) 3984 x 2240, (S1) 2976 x 1680 (S2) 2400 x 1344

JPEG 1:1: (L) 4000 x 4000, (M) 2656 x 2656, (S1) 1984 x 1984, (S2) 1600 x 1600″

Folders: New folders can be created and selected

File Numbering: (1) Continuous, Auto Reset

(2) Manual Reset

EOS Movie

Movie Type: MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC-LC (stereo)]

Movie Size: 4K – 3840 x 2160 (23.98, 25 fps)

Full HD – 1920 x 1080 (59.94, 50, 29.97, 25, 23.976 fps)

HD – 1280 x 720 (119.9, 100, 59.94, 50 fps)

Movie Length: Max duration 29min 59sec, Max file size 4GB

Other Features

Custom Functions: 9 customisable buttons

Metadata Tag: User copyright information (Author’s Name, Copyright Details)

Image rating (0-5 stars)

Playback Zoom: 15 steps plus smooth pinch-to-zoom

Display Formats: (1) Single image with information (toggle options)

(2) Single image

(3) Index display (4/9/36/100 images)

(4) Jump Display (1/10/custom number image, by shot date, by rating, by folder, by movies only, protected only)

SlideShow: Playback time: 1/2/3/5/10/30 seconds

Repeat: On/Off

Transition Effects: Off, Slide in 1-2, Fade 1-3

Added background music

Histogram: Brightness/ RGB

Highlight Alert: Yes

Image Erase Protection: Erase: Single image, Selected images, Selected range, folder, All images

Protection: Selected images, Selected range, All images. Folder, Unprotect all images

Menu Categories: (1) Shooting menu

(2) Playback menu

(3) Wireless menu

(4) Setup menu

(5) Display menu

(6) My Menu

Menu Languages: 29 Languages

English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Vietnamese, Indonesian, Hindi, Japanese

Firmware Update: Firmware update possible by the user.

Interface

Computer: Hi-Speed USB (Micro USB)

Other: Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch)

Bluetooth® (Specification version 4.2, Bluetooth low energy technology)

HDMI (Micro – Type-D connector), HDR output to compatible TV supported

Direct Print

Canon Printers: Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

PictBridge: Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

Storage

Type: SD, SDHC, SDXC (UHS-I compatible)

Supported Operating System

PC: See support pages for up-to-date information

Macintosh: See support pages for up-to-date information

Software

Image Processing: Digital Photo Professional

Other: Picture Style Editor, EOS Utility, Image Transfer Utility

Camera Connect app available on iOS and Android devices

Power Source

Batteries: 1 x Rechargeable Li-ion Battery LP-E12

Battery Life: Viewfinder: Approx. 250 shots (at 23°C, AE 50%, FE 50%)

Live view: Approx 305 shots (at 23°C, AE 50%, FE 50%)

4K Movie Recording: Approx. 95 mins

Full HD Movie Recording: Approx 130 mins

Playback time when playing back a slideshow of still images: Approx. 3 hrs 45 mins

Battery Indicator: 4 levels

Power Saving: Display off (15, 30 sec or 1, 3, 5, 10, 30 mins)

Auto Power Down (30 sec or 1, 3, 5, 10 mins, Disable)

Viewfinder off (1, 3 min, disable)

ECO mode

Power Supply & Battery Chargers: Battery charger LC-E12Compact Power Adapter CA-PS700

DC Coupler DR-E12

Accessories

Cases / Straps: Camera Jacket EH32-CJJ (beige)

Camera Jacket EH32-CJJ (light brown)

Neck Strap EM-E2 (light brown)

Neck Strap EM-E2(BW) (brown)

Neck Strap EM-E2(BK) (black)

Neck Strap EM-E2(WH) (white)

Neck Strap EM-200DB

Lenses: EF-M lenses

All EF and EF-S lenses compatible via Mount adapter EF-EOS M

Flash: Canon Speedlites (including EL100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX II-RT, Macro-Ring-Lite, MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)Off-Camera Shoe Cord OC-E3, Speedlite Bracket SB-E2

Remote Controller / Switch: Bluetooth Remote BR-E1

Other: Interface cable IFC-600PCU

Mount Adapter EF-EOSM

Canon EOS M50 Mark II In The Box?

Canon EOS M50 Mark II Body

Camera Cover R-F-4

EF-M 15-45mm f/3.5-6.3 IS STM

Lens Cap E-49

Lens Dust Cap EB

Strap EM-200DB

Battery Charger LC-E12

Battery Pack LP-E12

Terminal Cover

Disclaimers

* Shooting at 23.98p is possible. Shooting takes place by cropping pixels from the center of the sensor. Contrast detection AF is used. 4K movies are cropped.

** AF is fixed. Playback is 1/4 slow motion playback (29.97p).

^ Compatible with iOS® versions 12.4/13.7, Android™ smartphone and tablet versions 6.0/7.0/7.1/8.0/8.1/9.0/10. Data charges may apply with the download of the free Canon Camera Connect app. This app helps enable you to upload images to social media services. Please note that image files may contain personally identifiable information that may implicate privacy laws. Canon disclaims and has no responsibility for your use of such images. Canon does not obtain, collect or use such images or any information included in such images through this app

^^ Compatible with select smartphone and tablet devices (Android™ version 5.0 or later and the following iOS® devices: iPhone 4s or later, iPad 3rd gen. or later, iPod Touch 5th gen.or later) equipped with Bluetooth® version 4.1 or later and the Camera Connect App Ver. 2.5.10. This application is not guaranteed to operate on all listed devices, even if minimum requirements are met.

† Prices and specifications subject to change without notice. Actual prices are determined by individual dealers and may vary."
