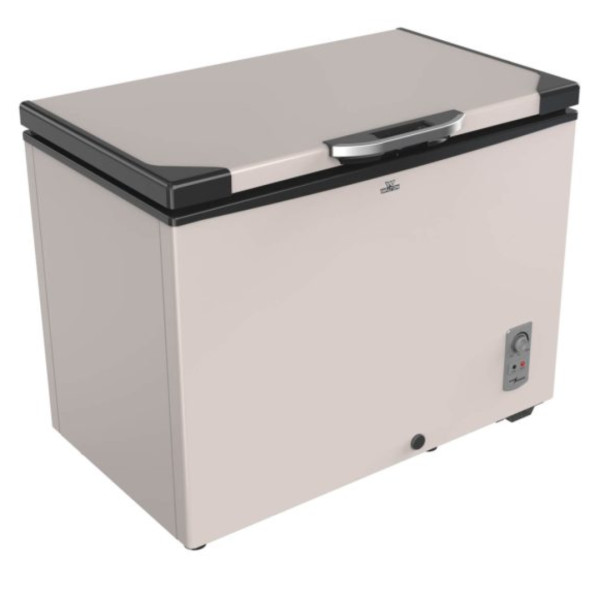

"Walton Refrigerator WCG-2E5-EHLC-XX Freezer

Walton Refrigerator WCG-2E5-EHLC-XX Freezer.

Features

​Type: Direct Cool

Category: Frost

Gross Volume: 255Ltr

Net Volume: 255Ltr

Refrigerant: R600a

Specifications

Type Direct Cool

Gross Volume 255Ltr.

Net Volume 255Ltr.

Gross Weight 55 ± 2 (Kg)

Net Weight 49 ± 2 (Kg)

Climatic Type (SN, N, ST, T) V.0301, N~ST

V.0302, N~ST

V.0401, N~T

V.0501, N~T

Rated Operating Voltage and Frequency 220 ~ 240/ 50

Compressor Input Power (Watt) V.0301-109

V.0302-109

V.0401-133

V.0501-102

Compressor Type V.0301-RSCR

V.0302-RSCR

V.0401-Inverter

V.0501-RSCR

Wide voltage range V 03.01

Cooling Effect Freezer Cabinet Less than -18℃

Temperature Control (Electronic/ Mechanical): V.0301-Mechanical

V.0302-Mechanical

V.0401-Mechanical

V.0501-Electronics

Defrosting (Automatic/ Manual) Manual

Reversible Door N/A

Handle (Recessed/ Grip) Yes

Lock Yes

Refrigerant V.0301-R600a

V.0302-R600a

V.0401-R600a

V.0501-R600a

Condenser 100% Copper

Thermostat RoHS Certified

Capillary Copper

Polyurethane foam blowing agent Cyclopentene [Eco-friendly (100% CFC &

HCFC Free) Green Technology]

 Recommended voltage stabilizer capacity (2000VA or More) V.0301-Not Required for 140V to above

V.0302-Not Required for 140V to above

V.0401-Not Applicable

V.0501-Not Required for 140V to above

Exterior Material Painted Steel (PCM)

Interior Material Embossed Aluminum Sheet

Ice/ cold water Dispenser No

Cool Pack Yes

Drawer No

Basket Plastic

Interior Lamp Yes

Width/mm 1085

Depth/mm 725

Height/mm 855

Width/mm 1150

Depth/mm 745

Height/mm 890

Loading quantity (20ft/40ft.40HQ) 32/64/96

Warranty Information

Replacement Guarantee (Compressor, Chamber, Condenser): 1 Year (Residential Use)

Main Parts (Compressor): 12 Years

Spare Parts: 4 Years *

After Sales Service:5 Years *

N.B. This warranty does not cover the following cases

Any damage due to accident, electrical fault, natural causes, negligence or improper installation.

Any damage or failure caused by unauthorized modification or alteration.

Products with original serial numbers that have been removed, distorted or cannot be readily recognized.

Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel."
