Detailed Information

Climatic type: (sn, n, st, t) N~ST

Rated operating voltage and frequency: 220 ~ 240/ 50

Compressor input power (watt) :

V 06.01-124

V 07.01-109

V 07.02-109

V 07.03-109

V 08.01-127

Compressor type: RSCR

Cooling effect: Freezer Cabinet Less than -18℃

Refrigerator Cabinet: 0℃ to +5℃

Temperature control (electronic/mechanical): Mechanical

Defrosting (automatic/ manual): Manual

Handle (recessed/ grip): Recessed/Grip

Lock: Yes

Capillary: Copper

Refrigerant: R600a

Thermostat: RoHS Certified

Polyurethane foam blowing agent: Cyclopentene [Eco-friendly (100% CFC & HCFC Free) Green Technology]

Recommended voltage stabilizer: V 06.01-Low Voltage(130~260V)

For V 06.01- Wide Voltage Range (130Vac - 260Vac). Voltage stabilizer is not required.

In case of voltages beyond this range, 1000VA is recommended.

V 07.01,V 07.02,V 07.03-Low Voltage(140~260V)

For V07.01, V 07.02,V 07.03 - Wide Voltage Range (140Vac - 260Vac).

Voltage stabilizer is not required. In case of voltages beyond this range, 1000VA is recommended

V 08.01-Low Voltage(150~260V)

For V 08.01 - Wide Voltage Range (150Vac - 260Vac).

Voltage stabilizer is not required.

In case of voltages beyond this range, 1000VA is recommended.

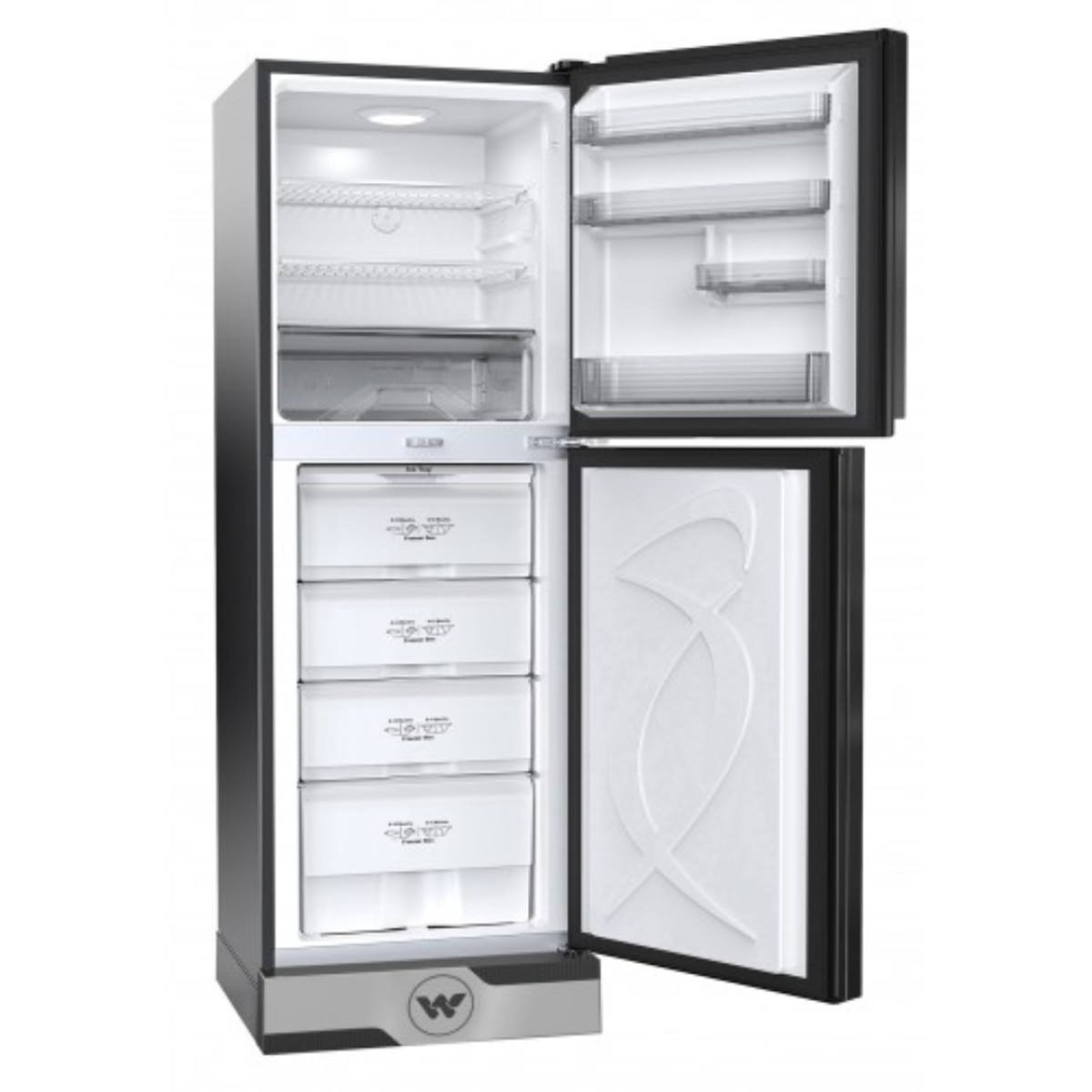

refrigerator compartment

Shelf (Material/No.): Wire/2

Door Basket: GPPS/4

Interior Lamp: Yes

Vegetable Crisper: Yes

Vegetable Crisper Cover: Yes

Egg Tray: Yes

Freezer compartment

Shelf (Material/ No.): Wire/3

Drawer: HIPS/5

Net dimension (mm)

Width/mm: 555 mm

Depth/mm: 630 mm

Height/mm: 1720 mm

Packing

Width/mm: 580 mm

Depth/mm: 645 mm

Height/mm: 1765 mm

Loading Capacity- 40HQ/ 40Ft/ 20Ft: 98/ 72/ 36

Net weight (kg): 59 ± 2 Kg

Gross weight (kg): 66 ± 2 Kg

Special Feature

1. Experience freshness with WALTON Refrigerator.

2. Faster Cooling Speed: Latest cooling system design technology is applied which confirms faster cooling speed.

3. Longer Freshness: Keep all your food fresh and healthy for longer with Walton Refrigerator.

4. Magical nano silver technology in plastic & anti fungal door gasket.

5. Wide Climate Design (N~ST).

Warranty Information

Residential use

- Replacement Guarantee: 1 Year (Condition Apply)

- Main Parts (Compressor): 12 Years

- Door: 3 Years *

- Spare Parts: 4 Years *

- After Sales Service: 5 Years *

commercial use

- Main Parts (Compressor): 4 Years

- Door: 1 Years *

- Spare Parts: 2 Years *

- After Sales Service: 2 Years *

Terms & Conditions

Warranty Terms & Conditions:

This warranty does not cover the following cases:

1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.

2. Any damage or failure caused by unauthorized modification or alteration.

3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.

Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
