"HARDWARE FEATURES

INTERFACE 4 10/100Mbps LAN ports

1 10/100Mbps WAN port

BUTTON WPS/Wi-Fi Button

Reset Button

Power On/Off Button

EXTERNAL POWER SUPPLY 9V/0.6A(EU), 9V/0.85A(US)

DIMENSIONS ( W X D X H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)

ANTENNA 2 × 2.4GHz Antennas

1 × 5GHz Antenna

WIRELESS FEATURES

WIRELESS STANDARDS IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

FREQUENCY 2.4GHz and 5GHz

SIGNAL RATE 5GHz: Up to 433Mbps

2.4GHz: Up to 300Mbps

RECEPTION SENSITIVITY 5GHz:

11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;

11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9:

-62dBm

2.4GHz:

11g 54M: -76dBm11n; HT20 MCS7: -73dBm;

11n HT40 MCS7: -71dBm

WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

WIRELESS SECURITY 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

TRANSMISSION POWER CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

SOFTWARE FEATURES

QUALITY OF SERVICE WMM, Bandwidth Control

MANAGEMENT Access Control

Local Management

Remote Management

PORT FORWARDING Virtual Server, Port Triggering, UPnP, DMZ

DYNAMIC DNS DynDns, Comexe, NO-IP

VPN PASS-THROUGH PPTP, L2TP, IPSec

ACCESS CONTROL Parental Control, Local Management

Control, Host List,

Access Schedule, Rule Management

FIREWALL SECURITY DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

PROTOCOLS Supports IPv4 and IPv6

GUEST NETWORK 2.4GHz guest network × 1

5GHz guest network × 1

OTHERS

CERTIFICATION CE, RoHS

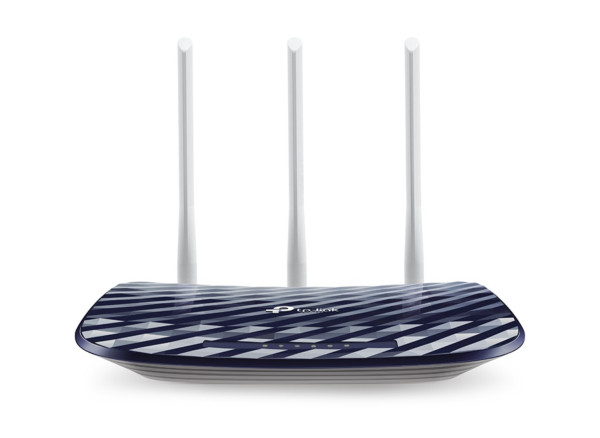

PACKAGE CONTENTS AC750 Wireless Dual Band Router Archer C20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

BOX DIMENSIONS (W X D X H) 14 x 8.8 x 2.7 in. (357x223x68mm)

SYSTEM REQUIREMENTS Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux

Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers

Cable or DSL or Fiber Modem/Terminal

Subscription with an Internet Service Provider (for Internet access)

ENVIRONMENT Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing"
