Features

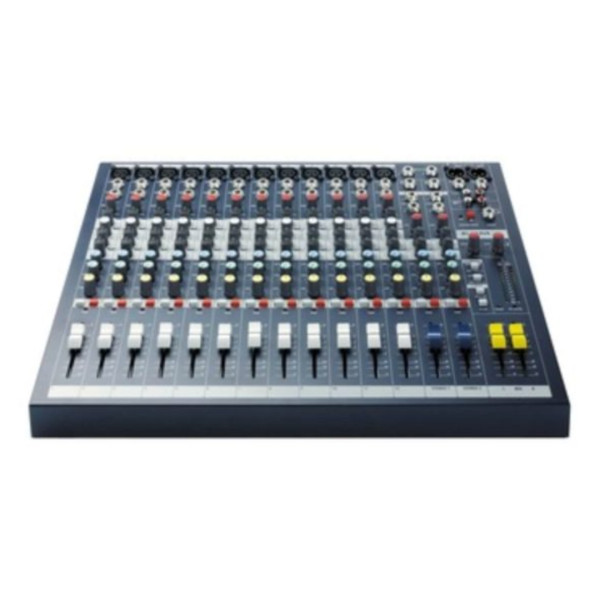

Frame sizes 6+2, 8+2 and 12+2

2 configurable auxiliary buses

XLR-type and ¼” metal jack connector sockets

RCA phono stereo playback inputs and record outputs

3-band EQ with a swept mid on mono inputs

2-band EQ on stereo inputs

TRS insert sockets and inserts on all mono inputs and mix output

Ten-segment LED output metering

Intuitive and comprehensive solo system

Headphone output

Easily rack mountable

Specifications

Frequency Response Mic / Line Input to any Output: +/-1.5dB, 20Hz – 20kHz

T.H.D. Mic Sensitivity: -30dBu, +14dBu @ Mix output < 0.02% @ 1kHz

Noise Mic Input E.I.N. (maximum gain) -128dBu (150Ω source)

Aux, Mix and Masters (@ 0dB, faders down): < -85dBu

Crosstalk

(@ 1kHz) Channel Mute: > 96dB

Aux Send Pots Offness: > 86dB

EQ (Mono inputs) HF 12kHz, +/-15dB

MF (swept) 150Hz – 3.5kHz, +/-15dB

LF 80Hz, +/-15dB

EQ (Stereo inputs) HF 12kHz, +/-15dB

MF (EFX Only) 720Hz, +/-15dB

LF 80Hz, +/-15dB

Power Consumption Less than 20W

Input & Output Levels Mic/Line Input Max Level: +17dBu max.

Line Input Max Level: +30dBu max.

Stereo Input Max Level: +30dBu max.

Mix Output Max Level: +20dBu max.

Headphones (@200Ω): 300mW

Input & Output Impedances Mic Input: 2kΩ

Line Input: 10kΩ

Stereo Input: 65kΩ (stereo), 35kΩ (mono)

Outputs: 150Ω (balanced), 75Ω (unbalanced)
