"Features

Dual-Channel Recording

DJI Mic comes with two transmitters, each with built-in microphones. Both transmitters support omnidirectional audio, making them ideal for multi-person interviews and small studio operations.

DJI-Mic-Dual-Channel-Recording

High-Quality Audio

DJI Mic allows you to record high-fidelity, professional audio by accurately reproducing tone across a wider frequency range. Recordings can be made separately via each channel, or the two channels can be combined for flexibility in post-production.

Built-in Touchscreen and Onboard Memory

The receiver’s touchscreen display gives you easy access to channel selection, input/output settings, and other essential operations. Both transmitters come with 14 hours of built-in storage to prevent audio frame drop, loss, and other issues.

250m (820 ft.) Stable Transmission

Cable free, hassle free. Enjoy unlimited creativity empowered by stable wireless transmission. Up to 250m (820 ft.) audio transmission range is supported in open, unobstructed environments without interference, meeting the needs of normal scenarios like live streaming, studios, and outdoor recording.

250m Transmission Range

Using DJI’s latest encryption technology, DJI Mic is capable of recording crisp audio at distances of up to 250 meters.

Wireless Convenience

The entire DJI Mic system is wirelessly connected via a stable 2.4GHz frequency band, which allows you to move with complete freedom as you record your Adventure.

Powerful Anti-Interference

The optimized wireless transmission system ensures a stable stream of audio, even in areas such as train stations, shopping malls, and Offices.

Supports a Convenient Magnetic Design

Conveniently attach a transmitter to whatever you’re wearing via the integrated back clip or by using the clip magnets. Weighing approximately 30 grams (1 oz), wearing the transmitter is comfortable and seamless.

Clip On and Record

Each transmitter has a convenient back-clip that can be easily attached to clothes and other objects.

More Ways to Connect

When the clothes you’re wearing aren’t suitable for the back clip, the transmitters can also be attached via the clip Magnets.

Easy to Mount

With the hot shoe adapter, attach the receiver to your DSLR camera, mirrorless camera, or smartphone bracket and capture flawless footage to match the Audio.

Vastly Compatible

Different devices mean different input adapters, and DJI Mic covers them all. The receiver has USB-C, Lightning, and 3.5mm TRS ports, making it compatible with mainstream smartphones, cameras, and Laptops.

15-Hour Battery

With the provided charging case, spend less time worrying about battery level. The receiver and transmitters can be charged in the case to reach up to 15 hours of operating time for unlimited creation.

Rich Functionality

A secondary audio track is recorded as a backup with a volume of -6 dB. This helps to safeguard your audio should the loss of sound be caused by problems such as distortion or clipping.

Multi-level Gain Control

Adjust input and output sensitivity between -12dB ~ 12dB and find the perfect setting for your surrounding

Microphone Windscreen

Effectively suppresses wind and noisy environments while still recording clear Sound.

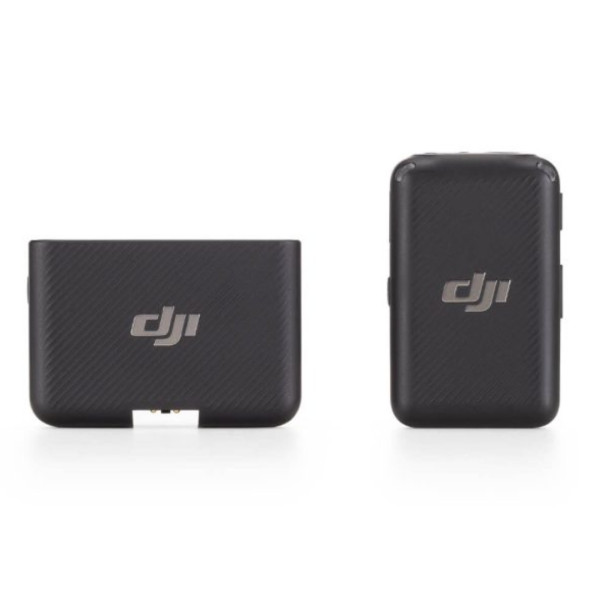

DJI Mic (1TX+1RX) Specifications

DJI Mic Transmitters

Model: AST01

Dimensions: 47.32×30.43×20.01 mm

Weight: 30 g

Wireless Mode: GFSK 1 Mbps and 2 Mbps

Equivalent Isotropic Radiated Power (EIRP): <20 dBm

Operating Frequency: 2400-2483.5 MHz

Battery Type: LiPo 1S

Battery Capacity: 320mAh

Battery Energy: 1.23Wh

Battery Voltage: 3.85 V

Charging Temperature: 5 to 45° C (41° to 113° F)

Operating Temperature: -10° to 45° C (14° to 113° F)

Charging Time: 70 mins

Operating Time: 5.5 hours

DJI Mic Receiver

Model: ASB01

Dimensions: 103.06×61.87×41.50 mm

Weight: 162.2 g

Battery Type: LiPo 1S

Battery Capacity: 2600mAh

Battery Energy: 10Wh

Battery Voltage: 3.87 V

Charging Temperature: 5 to 45° C (41° to 113° F)

Operating Temperature: 5 to 45° C (41° to 113° F)

Charging Time: 2 hours and 40mins

Operating Time: Fully charge three devices simultaneously 1.8 times

General

Microphone Directions: All Directions (Learn More)

Frequency Response:

Low Cut Off: 50 Hz – 20 kHz

Low Cut On: 150 Hz – 20 kHz

Max Sound Pressure Level (SPL): 114 dB SPL

Max Input Level (3.5 mm): -17 dBV (THD < 0.1%)

Equivalent Noise: 23 dBA

Monitor Interface Output Power: Max Output 22mW@1kHz, 32Ω

Max Transmission Distance:

250 m (FCC)

160 m (CE)"
