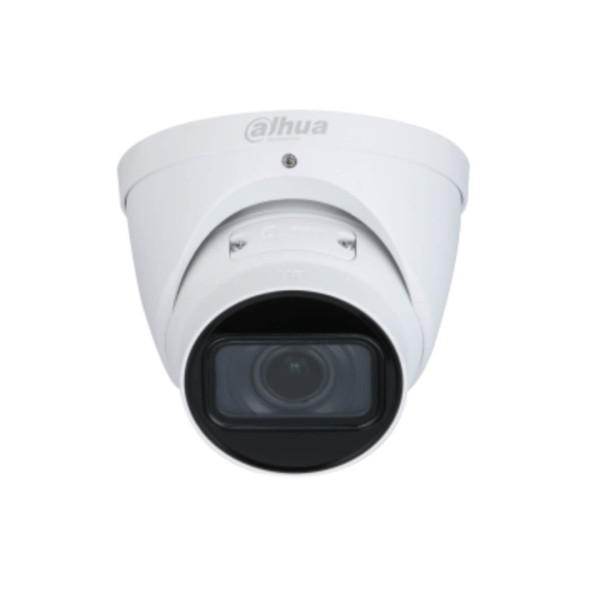

Dahua IPC-HDW1230T1P 2MP IR-30M IR Eyeball Camera

Sku	:	BBBM-3498-231-89230-5513
Color	:	white
Weight	:	680G
Height	:
Availability	:	Available
Price	:	BDT 3,790.00

"2MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.

Outputs max. 2MP (1920 × 1080)@25/30 fps.

265 codec, high compression rate, ultra-low bit rate.

Built-in IR LED, and the max. Illumination distance is 40m.

ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments

Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

256 G SD card.

12V DC/PoE power supply.

IP67 protection."

Shipping Info

Shipping Fee In Dhaka City ৳60

Shipping Fee Out side of Dhaka City ৳120

Delivery Info

Delivery - In Dhaka city within 5 days or out of Dhaka 10 days

Warranty Info

No warranty available for this Product.

Return Info

In 3 days return after delivery

Sold By

Labue

Go To Store

"Specifications

Camera

Image Sensor 1/2.8″ CMOS

Max. Resolution 1920 (H) × 1080 (V)

ROM 16 MB

RAM 128 MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.005 Lux@F1.5 (Color, 30 IRE)

0.0005 Lux@F1.5 (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio > 56 dB

Illumination Distance 40 m (131.23 ft) (IR)

Illuminator On/Off Control Auto; Manual

Illuminator Number 2 (IR)

Pan/Tilt/Rotation Range Pan: 0°–355°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type Motorized vari-focal

Lens Mount φ14

Focal Length 2.8 mm–12 mm

Max. Aperture F1.5

Field of View Horizontal: 101°–33.5°; Vertical: 52.5°–19°;

Diagonal: 125°–38.5°

Iris Control Fixed

Close Focus Distance 1.2 m (3.94 ft)

DORI Distance Lens Detect Observe Recognize Identify

W 48 m

(157.48 ft)

19 m

(62.34 ft)

10 m

( 32.81 ft)

(16.40 ft)

T 131 m

(429.79 ft)

52 m

(170.60 ft)

26 m

( 85.30 ft)

13m

(42.65 ft)

Video

Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec Smart H.265+; Smart H.264+

Video Frame Rate Main stream:1920 × 1080@1–25/30 fps

Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 2 streams

Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control CBR/VBR

Video Bit Rate H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night Auto(ICR)/Color/B/W

BLC Yes

HLC Yes

WDR DWDR

Scene Self-adaptation (SSA) NA

White Balance Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control Auto; manual

Noise Reduction 3D NR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest (RoI) Yes (4 areas)

Image Stabilization NA

Smart Illumination Yes

Defog NA

Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror Yes

Privacy Masking 4 areas

Alarm

Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; defocus detection

Network

Network Port RJ-45 (10/100 Base-T)

SDK and API Yes

Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS

Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone

User/Host 6

Storage FTP; Micro SD card (Support max. 256 G)

Browser IE

Chrome

Firefox

Management Software Smart PSS; DSS; DMSS

Mobile Client IOS; Android

Certification

Certifications CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
