"Features

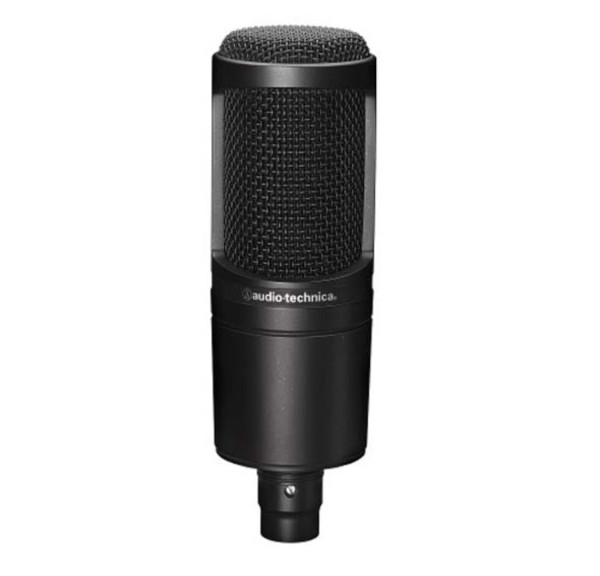

The price/performance standard in side-address studio condenser microphone technology

Ideal for project/home-studio applications

High SPL handling and wide dynamic range provide unmatched versatility

Relatively low self-noise – perfectly suited for sophisticated digital recording equipment

Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response

Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

Requires +48V phantom power

Specifications

Element Fixed-charge back plate, permanently polarized condenser

Polar Pattern Cardioid

Frequency Response 20-20,000 Hz

Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa

Maximum Input Sound Level 144 dB SPL, 1 kHz at 1% T.H.D.

Noise 20 dB SPL

Dynamic Range 124 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio 74 dB, 1 kHz at 1 Pa

Phantom Power Requirements 48V DC, 2mA typical

Weight 12.1 oz (345 g)

Dimensions 6.38″ (162.0 mm) long, 2.05″ (52.0 mm) maximum body diameter

Output Connector Integral 3-pin XLRM-type

Accessories Included AT2020 (black model): Stand mount for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch

AT2020V (limited-edition silver model): AT8458a shock mount; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch

Audio-Technical Case Style R7"
