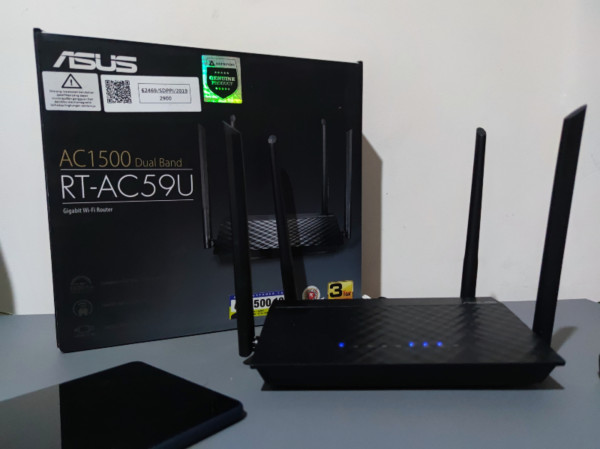

"ASUS RT-AC59U V2 AC1500 Specifications

Model Name

RT-AC59U V2

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

IPv4

IPv6

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 4 (802.11n) : up to 600 Mbps

WiFi 5 (802.11ac) : up to 867 Mbps

Antenna

External antenna x 4

Transmit/Receive

MIMO technology

2.4GHz 4×4

5GHz 2×2

Processor

74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz

Memory

32 MB Flash, 128 MB RAM

Boosts speed

Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee

256-QAM high data rate

20/40/80 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

USB 2.0 x 1

Button

WPS Button, Reset Button, Power Button

LED Indicator

Power x 1

Wi-Fi x 2

WAN x 1

USB x 1

LAN x 4

Power Supply

AC Input : 100V~240V(50~60Hz)

DC Output : 12 V with max. 1.5 A current

Package content

RT-AC59U Gigabit Wi-Fi Router

RJ-45 Cable

Quick Start Guide

Power Adapter

Warranty Card

Product Weight (g)

348g

AiMesh

AiMesh : Yes

Primary AiMesh router : Yes

AiMesh node : Yes

Router APP

ASUS Router APP : Yes

Game

Game Boost/acceleration : No

Alexa

Support Alexa skil : No

IFTTT

Support IFTTT : No

AiProtection

AiProtection : No

Router Security Assessment : No

Malicious site blocking : No

Two-Way IPS : No

Infected Device Prevention and Blocking ; No

Parental Control

Parental Control : Yes

Parental Control Customized Internet schedule : Yes

Traffic Control

Adaptive QoS : No

Bandwidth Monitor : No

Bandwidth limiter : Yes

Maximum Bandwidth limiter rule : 32

Traditional QoS : Yes

Maximum Traditional QoS rule : 32

Traffic Monitor : Yes

Real-time traffic monitor : Yes

Wired Traffic Monitor : Yes

Wireless Traffic Monitor : Yes

Traffic Analyzer : No

Traffic analysis period : Daily, Weekly, Monthly

Website history : No

Wireless

IPv6 : Yes

MU-MIMO : No

Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

UTF-8 SSID : Yes

Guest Network : Yes

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Encryption : Open system, WPA/WPA2-Personal

WPS : Yes

Wi-Fi MAC address filter : Yes

Maximum MAC filters : 64

Wireless scheduler : Yes

Airtime fairness : Yes

RADIUS Server : Yes

Universal beamforming : Yes

Explicit beamforming : Yes

IGMP snooping : Yes

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN : No

WAN Aggregation : No

3G/4G LTE dongle : Yes

Android tethering : Yes

Port forwarding : Yes

Maximum port forwarding rule : 64

Port triggering : Yes

Maximum port triggering rule : 32

DMZ : Yes

DDNS : Yes

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server : Yes

IPTV : Yes

LAN Link Aggregation : No

Manually assign IP address : Yes

VPN

VPN Client L2PT : Yes

VPN Client OVPN : Yes

VPN Client PPTP : Yes

VPN Server IPSec : No

VPN Server OVPN : Yes

VPN Server PPTP : Yes

VPN Fusion : No

USB application

File System : FAT16, FAT32, NT3G, ext2, ext3

3G/4G LTE dongle : Yes

HDD hibernation : No

Safely Remove disk : Yes

AiCloud : No

Download master : No

AiDisk : Yes

Media Server : Yes

Time Machine : No

Samba Server : Yes

FTP Server : Yes

Shared Folder privileges : Yes

Administration

Operating mode: Accesspoint, Mediabridge, Router

Operating system : ASUSWRT

Free OS upgrade : Yes

Firewall : Yes

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL) : Yes

SSH : Yes

Configuration backup and restore : Yes

Diagnosis tools : Yes

Feedback system : Yes

System log : Yes"
