Basic Information

Brand: Walton

Model: WSI-KRYSTALINE-24HH

Series Name: Krystaline

Air Conditioner Type: Intelligent Inverter

Function: Heating & Cooling

Cooling Capacity (Ton): 2 Ton

Compressor: Rotary (Inverter)

Refrigerant: R-32

Technology: Latest Intelligent INVERTER

Cooling Capacity (Btu/Hr): 24000 BTU/Hr

Cooling Capacity (W): 7034 Watts

Rated Voltage: 230V~50Hz

Rated Power: 2080 (Cooling), 2040 (Heating)

Rated Current (A): 9.07 (Cooling), 8.93 (Heating)

Eer: 3.38

Cop: 3.45

Detailed Information

Refrigerant Amount (Kg): 1.12

Operating range (ambient temperature): 20˚c to 55˚c (cooling), –7˚c to 24˚c (heating)

Indoor fin type: Louvered Fin

Indoor heat exchanger tube type: Copper Tube

Outdoor heat exchanger tube type: Slit Fin

Turbo mode: Yes

Dry mode: Yes (Cooling Mode Only)

Auto operation: Yes

Auto restart: Yes

Fan mode: yes

Speed setting: Yes (Auto, High, Medium, Low)

Comfort cooling: Yes

Timer: Yes

Sleep : Yes

Display type: LCD

Operation/control: Via IR (Infrared Ray)

Child lock: Yes

Temperature unit change: Yes

Auto up-down swing: Yes

Auto left-right swing: Yes

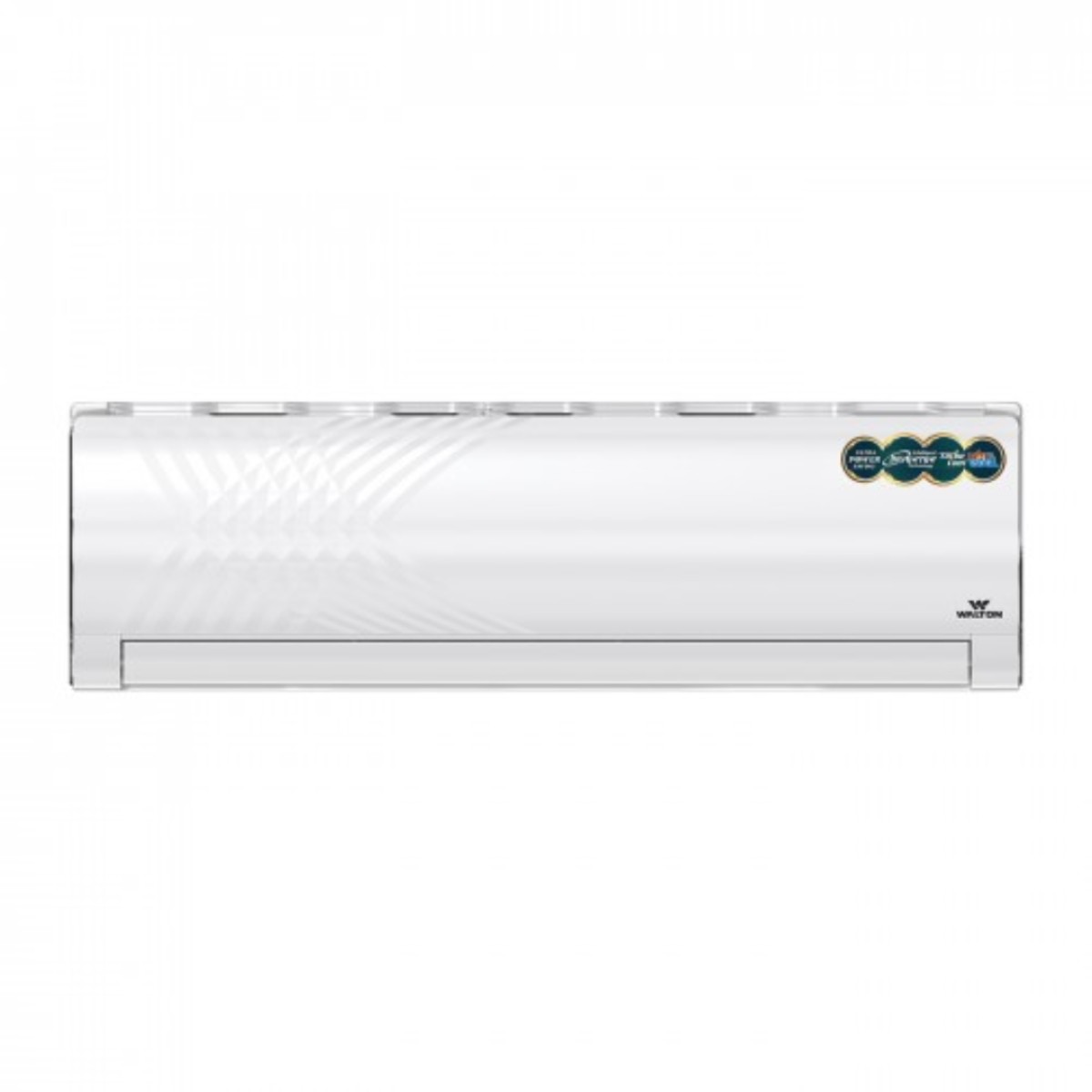

Indoor dimensions (mm) [l×w×h]

Unit - 1093 x 329 x 243,

Packing: 1180 x 410 x 315

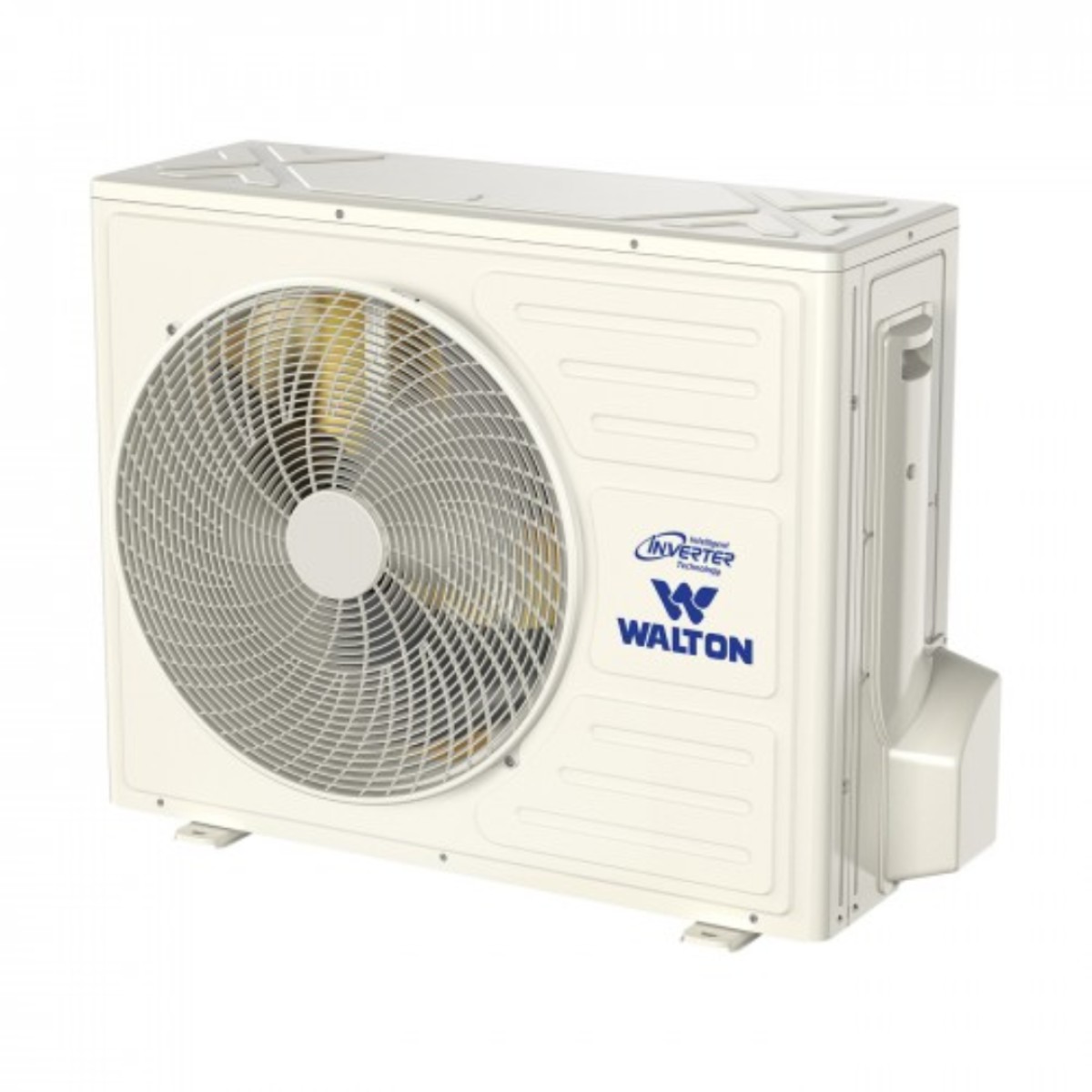

Outdoor dimensions (mm) [l×w×h]:

Unit: 942 x 371 x 701,

Packing: 1015 x 440 x 775

Net weight (indoor) (kg): 16 ± 0.5

Gross weight (indoor) (kg): 19 ± 0.5

Net weight (outdoor) (kg): 43 ± 1

Gross weight (outdoor) (kg): 48 ± 1

Special Feature

special features

1. COOL IN SUMMER WARM IN WINTER: Walton has introduced new heating and cooling model air conditioner for ensuring you're comfortable both in winter and summer. Even if you live in extreme temperature, depending on the weather you can control your room temperature by heating in winter and cooling in summer.

2. SILENT OPERATION: WALTON Air-Conditioner's indoor unit creates minimum amount of noise with a feel of natural breeze.

3. FAST COOLING: Walton Intelligent Inverter Air Conditioner offers faster cooling by the special combination of the compressor and control board. Only press the "Turbo" button and enjoy the feature faster and uniform cooling at every corner of the room.

4. WIDE TEMPERATURE RANGE: The Walton Intelligent Inverter Air Conditioner features a wide indoor set temperature range of 16°C to 31°C, with an outdoor ambient temperature operating range of 20°C to 55°C.

5. ECO FRIENDLY: Walton Intelligent Inverter Air Conditioner uses environment friendly refrigerant which has Zero Ozone Depletion Potential (ODP) & very low Global Warming Potential Ratings (GWP).

6. BUILT-IN SURGE PROTECTION: The integrated surge protector in Walton Air Conditioners shield the sensitive circuits from unexpected power surges (2kV and 4kV)*, allowing you to enjoy worry-free & hassle-free cooling throughout the year.

7. AUTOMATIC MULTI-DIRECTIONAL AIRFLOW: Walton Air Conditioner has Horizontal & Vertical swings which enable the air to guide/swing in four directions. You will feel same comfort at every corner of the room.

8. WIDE WORKING VOLTAGE RANGE: Walton Intelligent Inverter Air Conditioner has a wide working voltage range starting from 140V to 280V AC at 50Hz.

Warranty Information

product replacement warranty

Guarantee: 1 Year (Note: if there are manufacturing faults in the heat exchanger & compressor)

residential use

Compressor Guarantee: 12 Years

Spare Parts Support: 3 Years

Inverter PCB Warranty: 3 years

After Sales Service: 1 Year (Free)

commercial use

Compressor Guarantee: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)

Terms & Conditions

Warranty Terms & Conditions

1. This warranty does not cover the following cases -

i) If the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced or modified by unauthorized service personnel.

ii) If the product serial number/barcode is removed, altered, or duplicated.

iii) Product defects due to incorrect or negligent storing or use of the products.

iv) Failure to start due to voltage conditions, blown fuses or other damage due to inadequacy or interruption of electrical service.

v) Product defects due to exposure to extreme conditions, e.g. thunder, lightning, water ingress, fire, obstacle to deliver indoor & outdoor airflow.

vi) Damage / failure of product due to rat, cockroach and insects attack etc.

vii) If unit installed in hazards environment by chemical fume, corrosive environment like acid solution, sulfur solution, hydrogen per oxide, sodium sulfate salt, hydrogen Sulfide, Chlorides, bleaching powder, ammonia, chlorine. IPA/Thinner etc.

viii) If unit install in kitchen/oily environment and any heat element/source very near to indoor and outdoor.

2. This warranty covers only manufacturing defects, subject to verification by company personnel.

3. After sales service will be applicable only at company authorized service points.

4. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
