HARDWARE FEATURES

INTERFACE 4 10/100Mbps LAN PORTS

1 10/100Mbps WAN PORT

PORTS 4 × 10/100Mbps LAN Ports, 1 × 10/100Mbps WAN Port

BUTTON WPS/Reset Button

EXTERNAL POWER SUPPLY 9VDC / 0.6A

WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

DIMENSIONS ( W X D X H ) 6.9 x 4.6 x 1.3 in. (173 x 118 x 33mm)

ANTENNA 2*5dBi Fixed Omni Directional Antenna

WIRELESS FEATURES

WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

FREQUENCY 2.4-2.4835GHz

SIGNAL RATE 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

RECEPTION SENSITIVITY 270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -87dBm@8% PER

6M: -90dBm@10% PER

1M: -98dBm@8% PER

TRANSMIT POWER CE:

<20dBm

FCC:

<30dBm

WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

WIRELESS SECURITY 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES

QUALITY OF SERVICE WMM, Bandwidth Control

WAN TYPE Dynamic IP/Static IP/PPPoE/

PPTP/L2TP/BigPond

MANAGEMENT Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List,

Address Reservation

PORT FORWARDING Virtual Server,Port Triggering, UPnP, DMZ

DYNAMIC DNS DynDns, Comexe, NO-IP

VPN PASS-THROUGH PPTP, L2TP, IPSec (ESP Head)

ACCESS CONTROL Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

FIREWALL SECURITY DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

PROTOCOLS Support IPv4 and IPv6

GUEST NETWORK 2.4GHz Guest Network x1

WORKING MODES Wireless Router, Range Extender, Access Point, WISP

OTHERS

CERTIFICATION FCC, RoHS

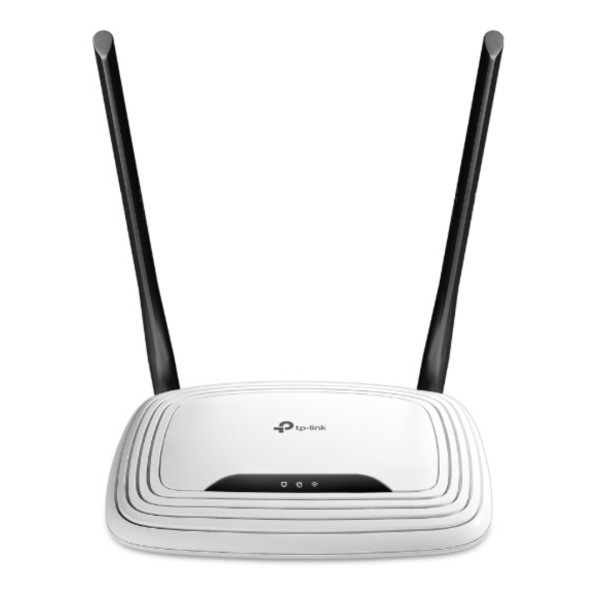

PACKAGE CONTENTS Wireless Router TL-WR841N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

SYSTEM REQUIREMENTS Microsoft® Windows® 10/8.1/8/7/Vista/XP/2000/NT/98SE,

MAC® OS, NetWare®, UNIX® or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing"
